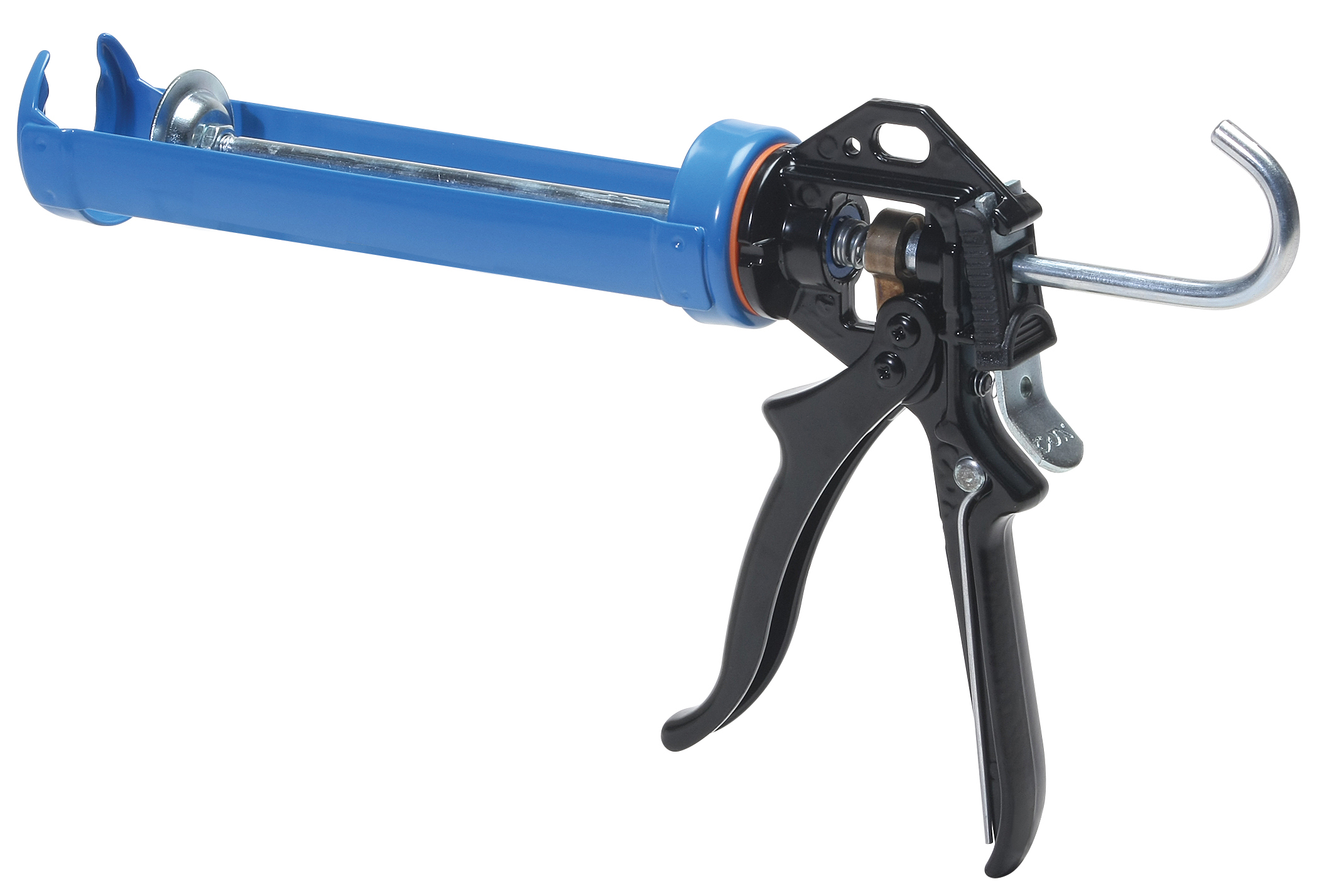

PowerFlow™
A 1-component manual bead dispenser for 310mL cartridges.
Specifications:
- Weight: 0.75kg / 1.65lbs
- Frame Length: 233mm / 9.2in
- Maximum Force: 562lbf
- Pressure Relief Device (PRD)
- Mechanical Advantage Ratio: (12:1)
- Handle Material: Epoxy Coated Aluminum
- Frame Material: Epoxy Coated Steel
- Tool Component Approvals: REACH
- Cartridge Capacity: 310mL (10.5oz)
- Viscosity: Low/Medium
- Standard Color: Blue
Customized versions on demand. Make an Enquiry
Features
- Seal puncture device
- High quality epoxy coated cast aluminum handle
- U-opening rotating steel frame
- Built in ladder hook
- Switchable Pressure Relief Device (PRD)
- Rotating Frame
- Spike
- Warranty up to 2 year*
*Effective 1st July 2018
Benefits
- For piercing barrier in cartridges
- Powerful and highly durable
- For ease of cartridge insertion and removal
- Creates convenient tool support and storage
- Prevents material run-on
- For easy cartridge insertion
- For piercing barrier in cartridges
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm |
8.35inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
