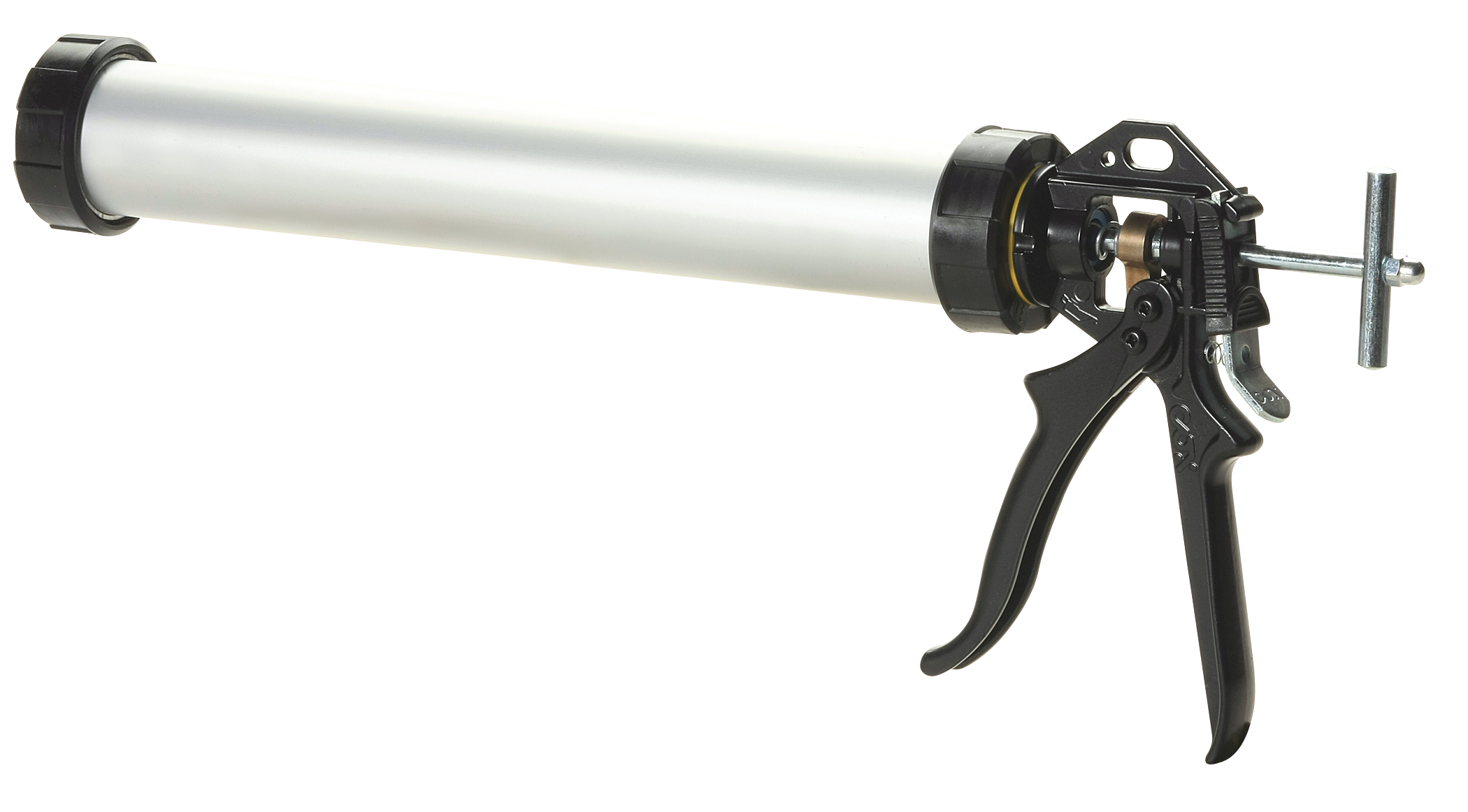

PowerFlow™ Combi
A 1-component manual bead dispenser for 310mL cartridges and 310/400/600mL sachets.
Specifications:
- Weight: 0.9-1.1kg / 2.0-2.3lbs
- Barrel Length: 231mm / 9.1in
- Maximum Thrust: 562lbf
- Handle Material: Epoxy Coated Aluminum
- Barrel Material: Anodized Aluminum
- Barrel Type: Anodized Aluminum
- Tool Component Approvals: REACH
- Cartridge Capacity: 310mL (10.5oz)
- Sachet Capacity: 310ml (10.5oz), 400mL (13.5oz), 600mL (20.3oz)
- Mechanical Advantage Ratio: (12:1)
- Viscosity: Low/Medium
- Standard Color: Black/Grey
- Nozzle Dimension: ø38mm / 1.5in
Customized versions on demand. Make an Enquiry
Features
- Preconfigured for sachet application
- Plungers included for cartridge & bulk applications
- High quality epoxy coated cast aluminum handle
- Anodized aluminum barrel
- Switchable Pressure Relief Device (PRD)
- Contoured handle and trigger grip
- Anodized aluminum and clear plastic barrel
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Assembled ready to use
- Gives you complete flexibility
- Lightweight and highly durable
- Easily converted from cartridge to sachet
- Prevents material run-on
- For ease of use
- Accommodates both cartridges & sachets
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm |
8.35inch |
| a |
⊘
50mm |
⊘
1.97inch |

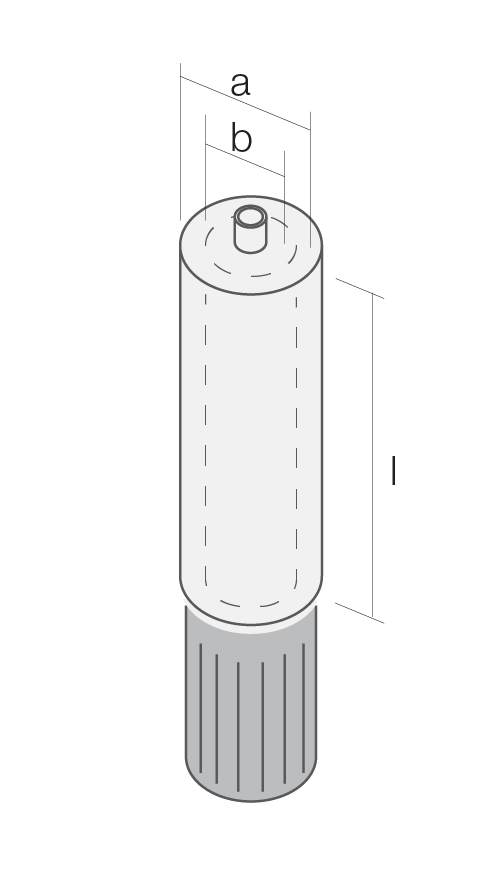

Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
32mm
|
⊘
1.2inch
|

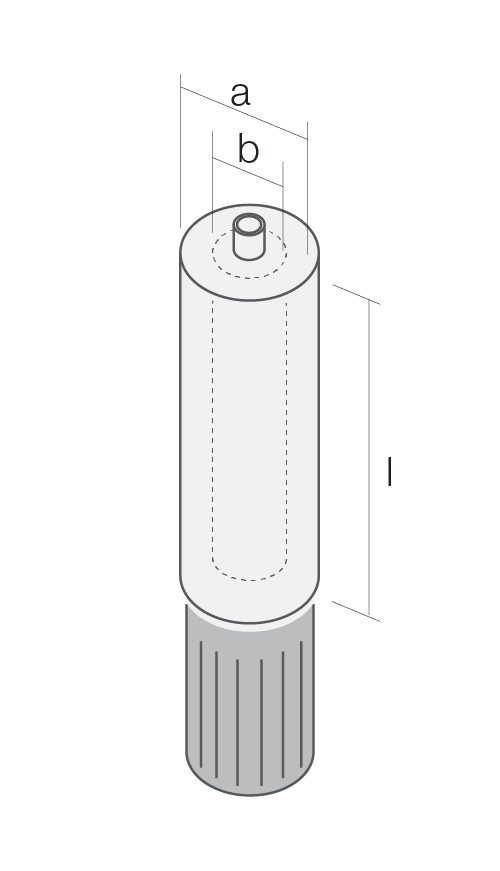

Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|

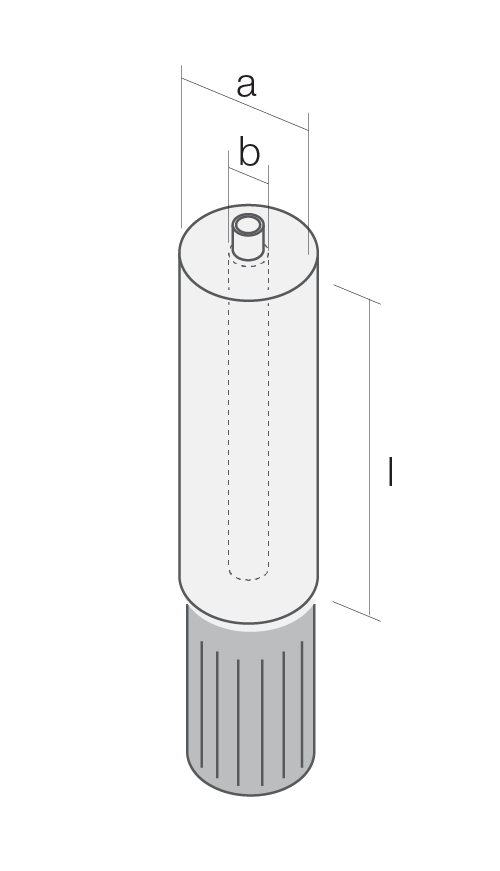

Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
Compatible Sachet: 310mL
| mm | inch | |
|---|---|---|
| l |
220mm |
8.66inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 400mL
| mm | inch | |
|---|---|---|
| l |
258mm |
10.16inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm |
13.2inch |
| a |
⊘
50mm |
⊘
2.0inch |
