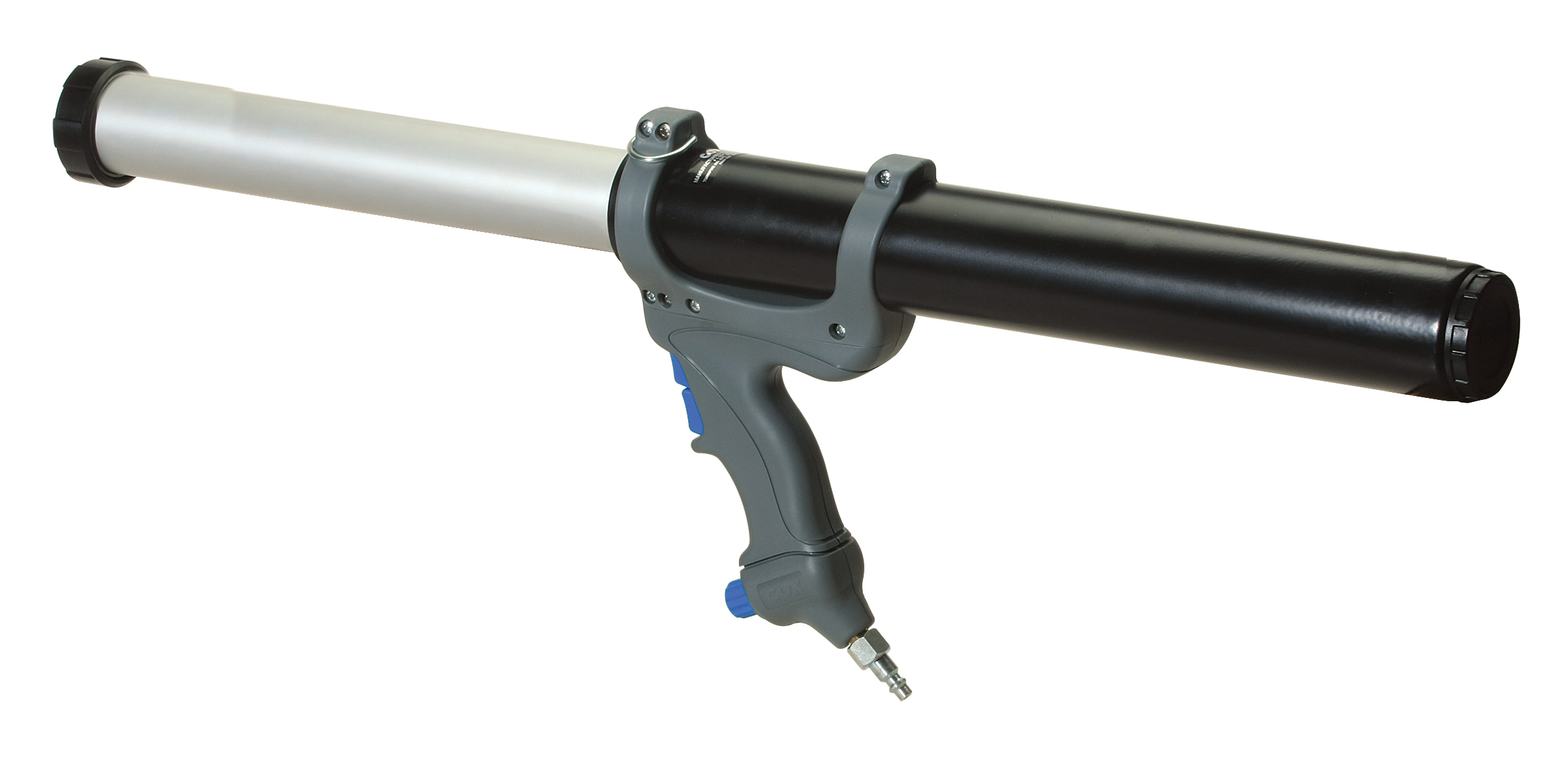

AirFlow™ 3 HP Combi
A 1-component pneumatic bead dispenser for 310mL cartridges and 310mL sachets.
Specifications:
- Weight: 1.73-1.83kg / 3.8-4lbs
- Barrel Length: 210-347mm / 8.3-13.6in
- Maximum Thrust: 787lbf
- Maximum Pneumatic Pressure: 6.8bar (100psi)
- Handle Material: Glass Filled Nylon
- Barrel Material: Anodized Aluminum
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 310mL (10.5oz)
- Sachet Capacity: 310mL (10.5oz), 600mL (20.3oz)
- Viscosity: Medium/High
- Standard Color: Black/Grey
- Nozzle Dimension: ø38mm / 1.5in
Customized versions on demand. Make an Enquiry
Features
- Preconfigured for cartridge application
- Plungers included for sachet
- Adjustable air regulator
- Built-in silencer (less than 70dB)
- Rod driven plunger
- Fitted as standard with a 6.8bar (100psi) regulator
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Assembled ready to use
- Gives you complete flexibility
- For precise control and smooth material flow
- Lowers the noise level
- Prevents cartridges ballooning
- Easy adjustment between bead and spray
- Gives you long worry free performance
Applications
 |
Bonding |
 |
Sealing |
Compatible cartridges Match your Cartridge
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm
|
8.35inch
|
| a |
⊘ 63.5mm
|
⊘ 1.97inch
|
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
⊘ 63.5mm
|
⊘ 1.9inch
|
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
⊘ 63.5mm
|
⊘ 1.9inch
|
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
⊘ 63.5mm
|
⊘ 1.9inch
|
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm
|
8.5inch
|
| a |
⊘ 63.5mm
|
⊘ 1.8inch
|
Compatible Sachet: 310mL
| mm | inch | |
|---|---|---|
| l |
220mm
|
8.66inch
|
| a |
⊘ 63.5mm
|
⊘ 1.97inch
|
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm
|
13.2inch
|
| a |
⊘ 63.5mm
|
⊘ 2.0inch
|
