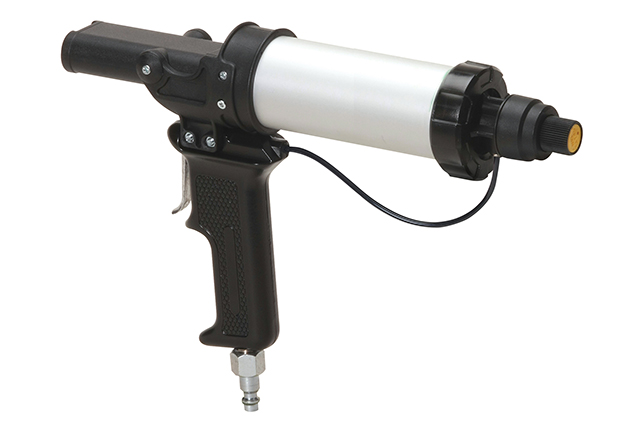

AirFlow™ 1 CBA 25
A 2-component pneumatic bead 37/43/50mL dispenser for cartridges.
Specifications:
- Weight: 1.9kg /4.1lbs
- Frame Length: 105mm/4.1in
- Maximum Thrust: 235lbf
- Maximum Pneumatic Pressure: 5.2bar/75psi
- Air Consumption: 40 litres/min
- Handle Material: Epoxy Coated Aluminum
- Cartridge Holder Material: Galss Fiber Reinforced Nylon
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 37mL (1.3oz), 43mL (1.5oz), 50mL (1.7oz)
- Cartridge Ratio: 1:1, 2:1, 3:1
- Viscosity: Low/Medium
- Standard Color: Black/Grey
Customized versions on demand. Make an Enquiry
Features
- Adjustable air regulator
- Minimum trigger pressure
- Easy loading breach
- Quick exhaust valve
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For effortless use and minimum fatigue
- Fast, accurate, effortless application
- Secure cartridge fit
- Prevents run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
|
Shimming |
Compatible cartridges
MIXPAC A-System: 50mL 4:1
| mm | inch | |
|---|---|---|
| l |
106mm |
4.17inch |
| a |
⊘
24.8mm |
⊘
0.98inch |
| b |
⊘
13.5mm
|
⊘
0.53inch
|
| c |
38.3mm
|
1.51inch
|
MIXPAC A System: 50mL 10:1
| mm | inch | |
|---|---|---|
| l |
106mm |
4.71inch |
| a |
⊘
25mm |
⊘
0.98inch |
| b |
⊘
9.5
|
⊘
0.37inch
|
| c |
42
|
1.65inch
|
