H2

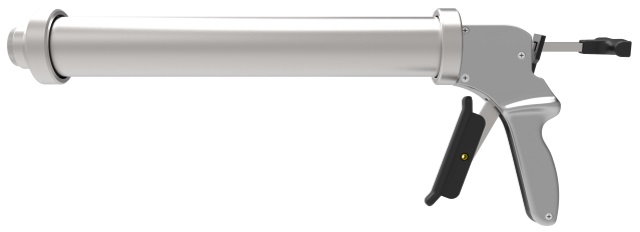

A 1-component manual bead dispenser for 400/600mL sachets and bulk material.
Specifications:
- Weight: 1.65kg / 3.64lbs
- Barrel Length: 398mm / 15.6in
- Maximum Thrust: 2.5kN (stroke 5.9mm)
- Handle Material: Aluminum
- Barrel Material: Polished Steel
- Sachet/Bulk Material Capacity: 400mL, 600mL
- Mechanical Advantage Ratio: (18:1)
- Viscosity: Medium
- Standard Color: Steel/Grey
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Suitable for both sachet and bulk
- Bayonet mouth piece
- Optimal gearing ratio
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable and easy handling
- Gives complete flexibility
- Easy to use and clean application
- One hand operation
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
Compatible Sachet: 400mL
| mm | inch | |
|---|---|---|
| l |
258mm |
10.16inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm |
13.2inch |
| a |
⊘
50mm |
⊘
2.0inch |
Bulk 400-4000mL
| mm | inch | |
|---|---|---|
| l |
N/A |
N/A |
| a |
⊘
N/A |
⊘
N/A |
