H1 X

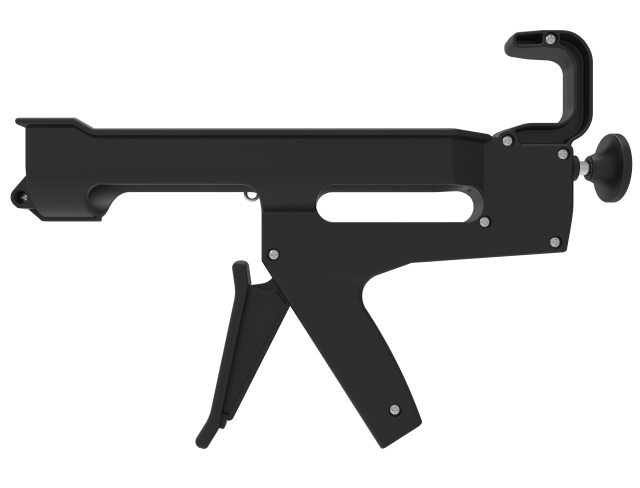

A 1-component manual bead dispenser for 310mL cartridges.
Specifications:
- Weight: 0.55kg / 1.21lbs
- Frame Length: 225mm / 8.9in
- Maximum Force: 562lbf
- Mechanical Advantage Ratio: 12:1
- Handle Material: Reinforced Nylon
- Frame Material: Reinforced Nylon
- Cartridge Capacity: 310mL (10.5oz)
- Viscosity: Low/Medium
- Standard Color: Black
Customized versions on demand. Make an Enquiry
Features
- Anti-drip
- Trigger integrated brake release
- Handle positioned centric under tray
- Ladder hook
- Integrated spike
- U-opening with cartridge snap fit
- Reinforced nylon frame and handle
- Life prolonging adjsutment screw
Benefits
- Prevents material run-on
- One-hand operation
- Balanced dispenser for precise working
- Easy suspension of tool with cartridge
- For piercing barrier in cartridges
- Automatic cartridge positioning and fixation
- Comfortable, lightweight and insulates against cold
- No loss of performance – anti-wear
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm |
8.35inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
