H245

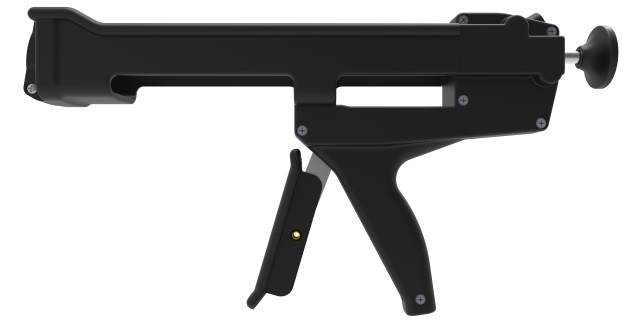

A 1-component manual bead dispenser for 310mL cartridges.
Specifications:
- Lightweight: 0.8kg / 1.7lbs
- Barrel Length: 250mm / 9.8in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Fully Molded Reinforced Nylon
- Barrel Material: Fully Molded Reinforced Nylon
- Cartridge Capacity: 310mL
- Mechanical Advantage Ratio: (26:1)
- Viscosity: High
- Standard Color: Black
- Nozzle Dimension: ø30.0mm / 1.2in
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Reinforced nylon frame with cartridge
- Life prolonging adjustment screw
- U-opening with cartridge snap fit
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable and easy handling
- Automatic cartridge positioning and fixation
- No loss of performance - anti-wear
- Automatic cartridge positioning and fixation
- Gives you long worry free performance
Applications
 |
Bonding |
 |
Chemical Anchoring |
 |
Sealing |
Compatible cartridges Match your Cartridge
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm
|
8.35inch
|
| a |
|
⊘ 1.97inch
|
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
|
⊘ 1.9inch
|
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
|
⊘ 1.9inch
|
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
|
⊘ 1.9inch
|
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm
|
8.5inch
|
| a |
|
⊘ 1.8inch
|
