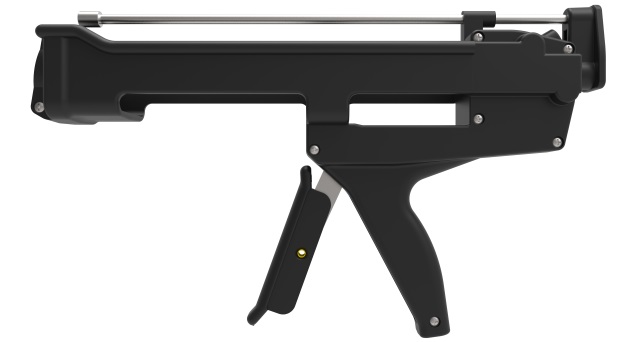

H260 M
A 2-component manual bead dispenser for 345/350mL cartridges.
Specifications:
- Lightweight: 0.9kg / 1.9lbs
- Cartridge Holder Length: 264mm / 10.4in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Cartridge Capacity: 345 (11.7oz), 350mL (12.3oz)
- Cartridge Ratios: 10:1
- Mechanical Advantage Ratio: (26:1)
- Standard Color: Black
- Customized versions on demand
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Life prolonging adjustment screw
- Reinforced nylon barrel housing
- High gearing ratio
- U-opening with cartridge snap fit
- Warranty up to 2 years*
Benefits
- Fast, reliable and clean application
- No loss of performance - anti-wear
- Long life technology
- Easy handling for precise working
- Gives you long worry free performance
Applications
 |
Bonding |
 |
Crack Repair |
 |
Roofing |
 |
Chemical Anchoring |
 |
Sealing |
 |
Solid Surface |
 |
Water Proofing |
Compatible cartridges Match your Cartridge

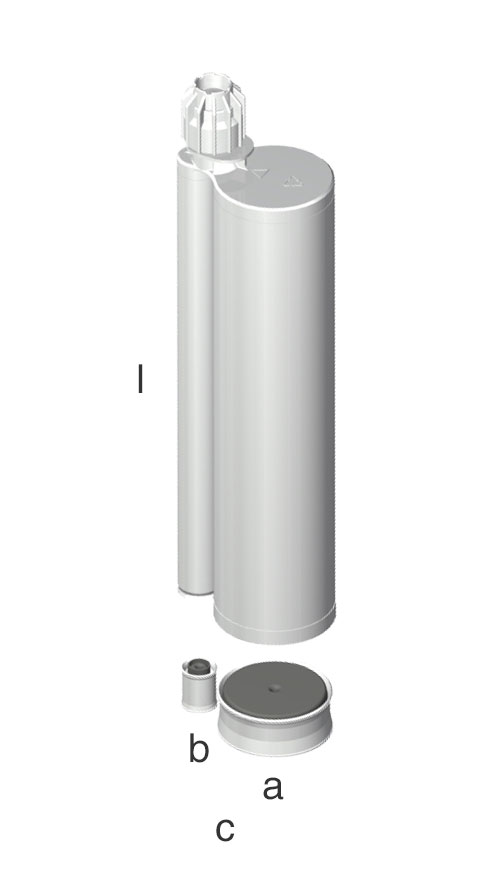

MIXPAC J-System: 350mL 10:1
| mm | inch | |
|---|---|---|
| l |
215mm
|
8.46inch
|
| a |
|
⊘ 1.98inch
|
| b |
⊘
17.8mm
|
⊘
0.7inch
|
| c |
69mm
|
2.72inch
|

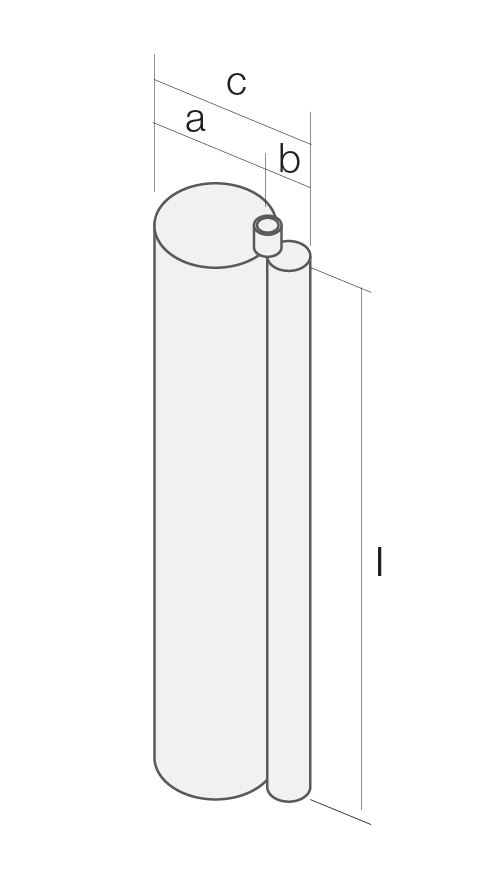

Compatible: 345mL 10:1
| mm | inch | |
|---|---|---|
| l |
215mm
|
8.46inch
|
| a |
|
⊘ 1.97inch
|
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
69mm
|
2.72inch
|

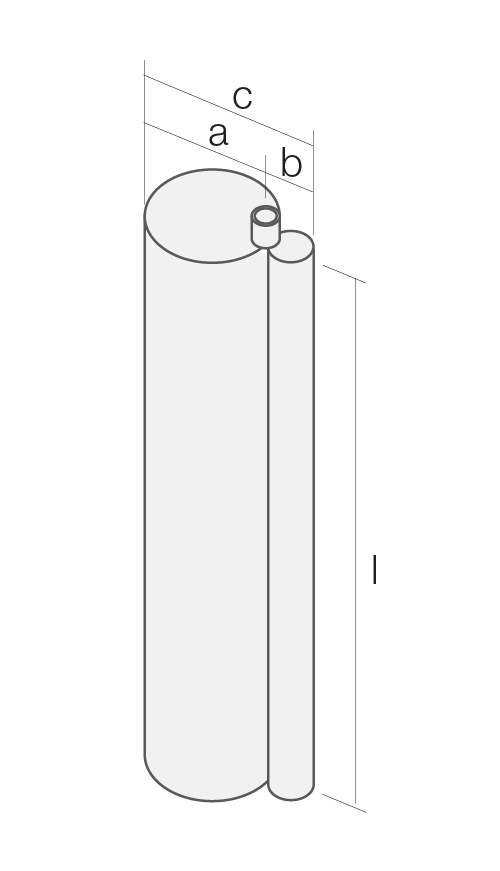

Compatible: 350mL 10:1
| mm | inch | |
|---|---|---|
| l |
215mm
|
8.46inch
|
| a |
|
⊘ 2.11inch
|
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
73mm
|
2.87inch
|
