T1

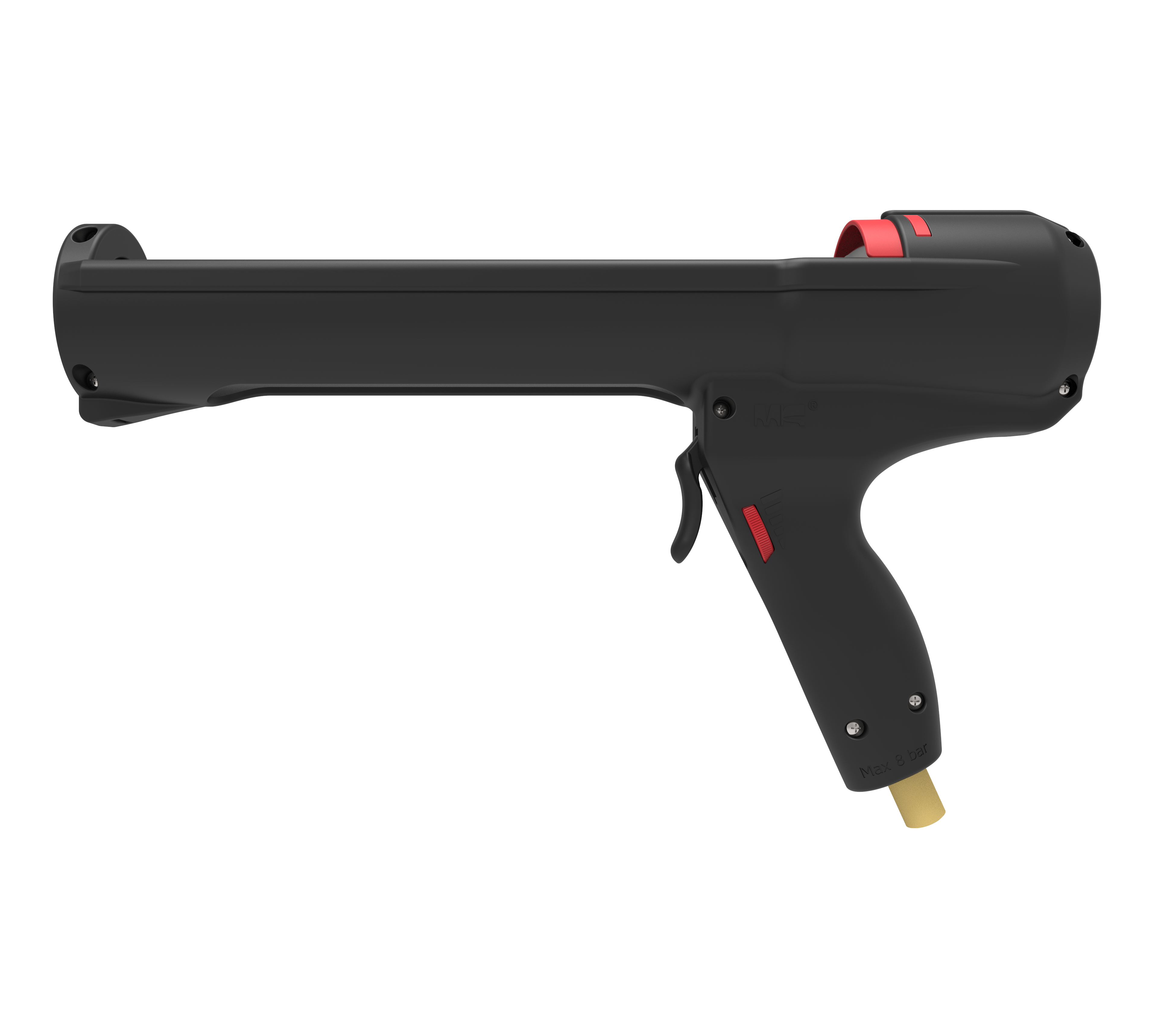

A 1-component pneumatic bead dispenser for 310mL cartridges.
Specifications:
- Weight: 0.41kg / 0.90lbs
- Frame Length: 249mm / 9.8in
- Maximum Force: 292lbf
- Maximum Pneumatic Pressure: 8bar / 116psi
- Handle Material: Reinforced Nylon
- Frame Material: Reinforced Nylon
- Cartridge Capacity: 310mL (10.5oz)
- Viscosity: Low/Medium
- Standard Color: Black
Features
- Forward air release
- Self adjusting back seal
- Cartridge snap fit
- Reinforced nylon frame and handle
- Integrated one-hand pressure adjustment
Benefits
- Fast, reliable and easy handling
- Automatically adapts to different cartridge lengths and diameters
- Provides automatic cartridge positioning and fixation
- Comfortable, lightweight and insulates against cold
- Regulate flow rate during application
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
