TS408 MY-8

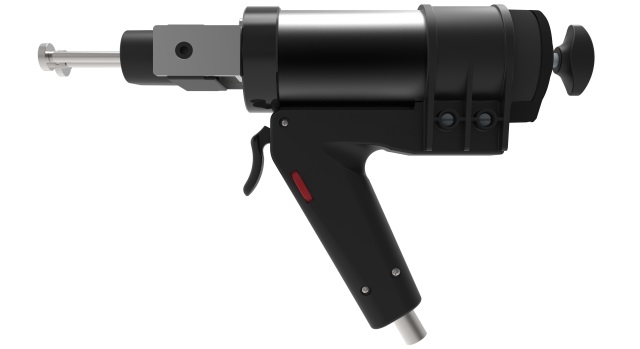

A 2-component pneumatic bead dispenser for 50mL cartridges.
Specifications:
- Lightweight: 0.73kg / 1.6lbs
- Dispenser Length: 303mm / 11.9in
- Maximum Thrust: 1.3kN
- Maximum Pneumatic Pressure: 8bar / 116psi
- Air Consumption: 40 litres/min
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Tool Component Approvals: CE
- Cartridge Capacity: 50mL (1.8oz), 75mL (2.5oz)
- Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
- Viscosity: High
- Standard Color: Black
Customized versions on demand. Make an Enquiry
Features
- Quick cartridge exchange
- One hand pressure adjustment
- Anti-drip function
- Reinforced nylon handle
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For efficient working
- Simple dispensing, effective working
- Clean application
- Compact and lightweight
- Gives you long worry free performance
Applications
 |
Bonding |
Compatible cartridges Match your Cartridge
MIXPAC A System: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
103mm
|
4.06inch
|
| a |
|
⊘ 0.85inch
|
| c |
43.4mm
|
1.71inch
|
MIXPAC A System: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
105mm
|
4.13inch
|
| a |
|
⊘ 0.98inch
|
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
42
|
1.65inch
|
MIXPAC A System: 50mL 10:1
| mm | inch | |
|---|---|---|
| l |
106mm
|
4.71inch
|
| a |
|
⊘ 0.98inch
|
| b |
⊘
9.5
|
⊘
0.37inch
|
| c |
42
|
1.65inch
|
MIXPAC B-System: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
107mm
|
4.21inch
|
| a |
|
⊘ 0.84inch
|
| c |
43.4mm
|
1.71inch
|
MIXPAC B-System: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
106mm
|
4.17inch
|
| a |
|
⊘ 0.98inch
|
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
42
|
1.65inch
|
Compatible: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
99.7mm
|
3.93inch
|
| a |
|
⊘ 0.83inch
|
| c |
46mm
|
1.81inch
|
Compatible: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
108.5mm
|
4.27inch
|
| a |
|
⊘ 0.89 inch
|
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
46mm
|
1.81inch
|
