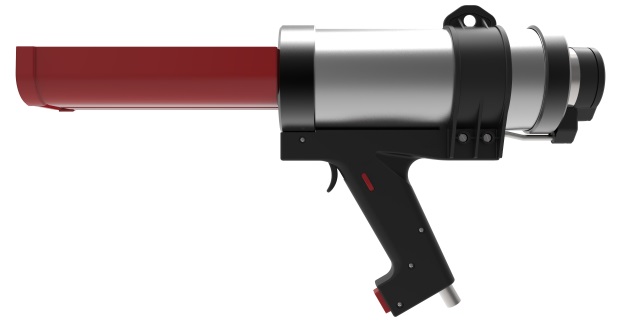

TS488 XM
A 2-component pneumatic bead dispenser for 600mL cartridges.
Specifications:
- Lightweight: 2.5kg / 5.5lbs
- Cartridge Holder Length: 270mm / 10.6in
- Maximum Thrust: 4kN
- Maximum Pneumatic Pressure: 8bar / 116psi
- Air Consumption: 40 litres/min
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE
- Cartridge Capacity: 600mL (21.1oz)
- Cartridge Ratio: 1:1
- Viscosity: Medium
- Standard Color: Black/Grey/Red
Customized versions on demand. Make an Enquiry
Features
- Air operated plunger retraction
- One hand pressure adjustment
- Anti-drip function
- Long life technology
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Quick cartridge exchange
- Simple dispensing speed adjustment
- Clean application
- Precise working
- Gives you long worry free performance
Applications
![]() |
Bonding |
| Crack Repair | |
| Roofing | |
![]() |
Chemical Anchoring |
![]() |
Sealing |
| Solid Surface | |
| Water Proofing |
Compatible cartridges Match your Cartridge
MIXPAC J-System: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm
|
8.46inch
|
| a |
|
⊘ 1.94inch
|
| c |
99.1mm
|
3.9inch
|
MIXPAC ecopaCC: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm
|
8.46inch
|
| a |
|
⊘ 1.97inch
|
| c |
100mm
|
3.94inch
|

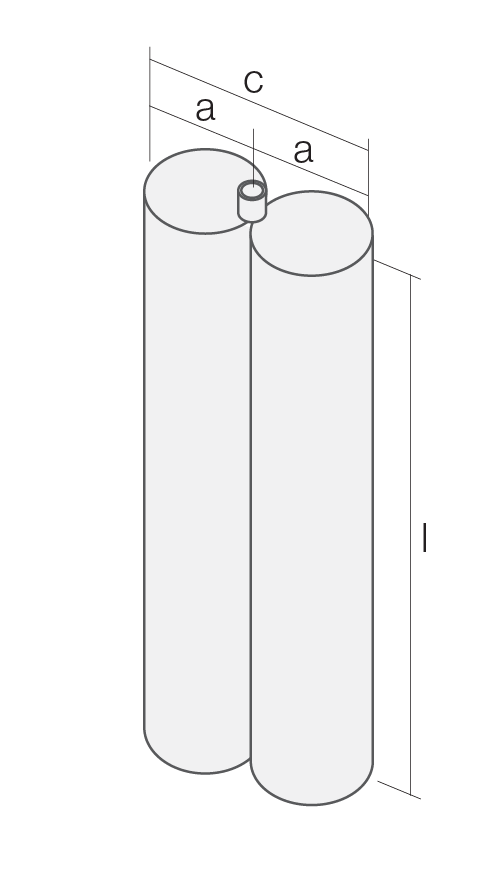

Compatible: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm
|
8.46inch
|
| a |
|
⊘ 1.94inch
|
| c |
98.5 mm
|
3.88inch
|
