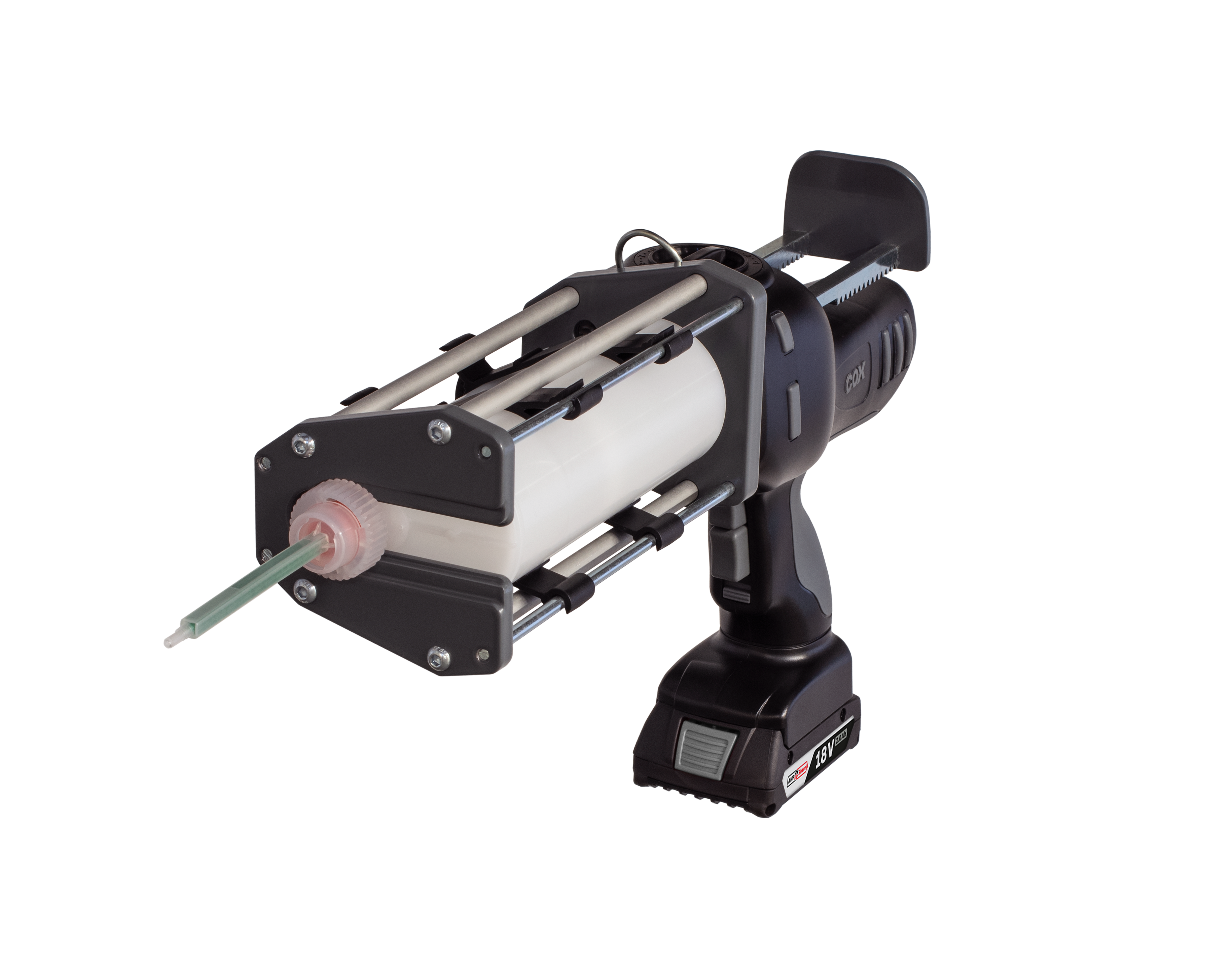

ElectraFlow™ Dual Ultra 400 MR
A 2-component 400mL dispenser powered by Bosch Professional 18V Li-ion batteries.
Specifications:
- Weight: 2.5-5kg / 5.5-11lbs
- Frame Length: 203mm / 8.0in
- Maximum Thrust: 5kN
- Voltage: 18V
- Battery Capacity: 2.0Ah
- Battery Charge Time: 35min
- Battery Type: Li-ion
- Handle Material: PC/ABS
- Frame Material: Steel / Aluminum
- Tool Component Approvals: CE, REACH, RoHS
- Cartridge Capacity: 400mL (14oz)
- Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
- Viscosity: Medium / High
- Standard Color: Black / Grey
Customized versions on demand. Make an Enquiry
Features
- Interchangeable snap fit cartridge straps and plungers
- Rechargeable 18V lithium Bosch battery
- Twin rack platform
- Automatic rack retraction
- Dispenser hook
- Customization possible
Benefits
- For quick and easy configuration
- 100% longer life time
- Ensures mixing ratio is maintained
- Anti-drip mechanism – no run on
- For prolonged use with shoulder strap
- Customer labelling
Applications
|
Bonding |
|
Repair |
|
Sealing |
|
Shimming |
Compatible cartridges
MIXPAC C-System: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
MIXPAC C-System: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC C-System: 400mL 4:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
58mm |
⊘
2.28inch |
| b |
⊘
30mm
|
⊘
1.18inch
|
| c |
91mm
|
3.58inch
|
MIXPAC C-System: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
MIXPAC F-System: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
MIXPAC F-System: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC F-System: 400mL 4:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
58mm |
⊘
2.28inch |
| b |
⊘
30mm
|
⊘
1.18inch
|
| c |
91mm
|
3.58inch
|
MIXPAC F-System: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
MIXPAC Blueline: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC Blueline: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
Compatible: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
Compatible: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
47mm |
⊘
1.85inch |
| b |
⊘
33mm
|
⊘
1.3inch
|
| c |
96mm
|
3.78inch
|
Compatible: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
65mm |
⊘
2.56inch |
| b |
⊘
19.5mm
|
⊘
0.77inch
|
| c |
94mm
|
3.7inch
|
The 2-component dispenser 400 MR is compatible with alternative cartridges. Please note: fit for purpose of the cartridges strictly requires customer's testing and approval thereof.
