UltraFlow™ Combi
A 1-component manual bead dispenser for 310/400mL cartridges and 310/400/600mL sachets.
Specifications:
- Weight: 1.0-1.1kg / 2.2-2.5lbs
- Barrel Length: 342mm-482mm / 13.5in-19.0in
- Maximum Thrust: 4.5kN
- Handle Material: Epoxy Coated Aluminum
- Barrel Material: Anodized Aluminum
- Tool Component Approvals: REACH
- Cartridge Capacity: 310mL (10.5oz), 400mL (13.5oz)
- Sachet Capacity: 310mL (10.5oz), 400mL (13.5oz), 600mL (20.3oz)
- Mechanical Advantage Ratio: (25:1)
- Viscosity: Medium/High
- Standard Color: Black/Grey
- Nozzle Dimension: ø38mm / 1.5in
Customized versions on demand. Make an Enquiry
Where to buy
Product Advantages
- Epoxy coated aluminum handle
- Large sintered metal catch plate
- Metal wear compensation sleeve
- Warranty up to 2 years*
*Effective 1st July 2018
Customer Benefits
- Powerful 25:1 trigger ratio for easy application
- Offers high load resistance
- Protects catchplate contact area - extends tool life
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm |
8.35inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
Compatible Sachet: 310mL
| mm | inch | |
|---|---|---|
| l |
220mm |
8.66inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible: 400mL
| mm | inch | |
|---|---|---|
| l |
256mm |
10.1inch |
| a |
⊘
49.0 |
⊘
1.9inch |

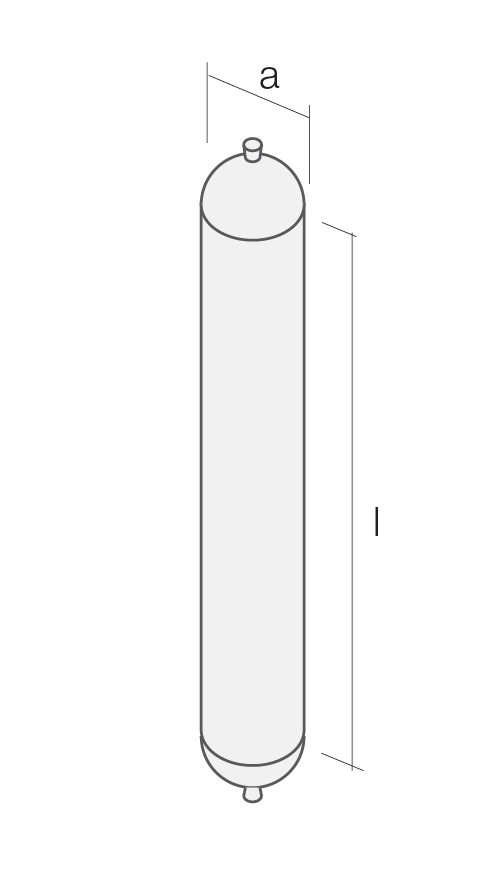

Compatible Sachet: 400mL
| mm | inch | |
|---|---|---|
| l |
258mm |
10.16inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm |
13.2inch |
| a |
⊘
50mm |
⊘
2.0inch |
