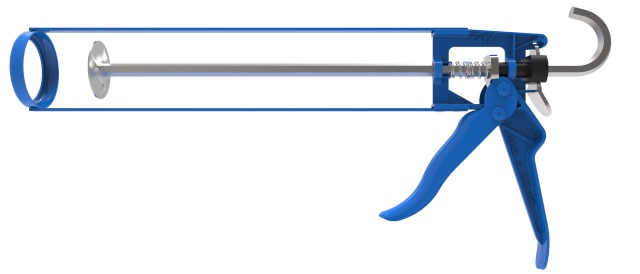

EasiFlow™ HD
A 1-component manual bead dispenser for 310/400mL cartridges.

Specifications:
- Weight: 0.51-0.54kg / 1.1-1.2lbs
- Frame Length: 231mm-268mm / 9.1in-10.5in
- Maximum Thrust: 1.2kN
- Pressure Relief Device (PRD)
- Handle Material: Epoxy Coated Steel
- Frame Material: Epoxy Coated Steel
- Tool Component Approvals: REACH
- Cartridge Capacity: 310mL (10.5oz), 400mL (13.5oz)
- Mechanical Advantage Ratio: (7:1)
- Viscosity: Low
- Standard Color: Blue
- Nozzle Dimension: ø41mm / 1.61in
Customized versions on demand. Make an Enquiry
Where to buy
Product Advantages
- Built-in Pressure Relief Device (PRD)
- Epoxy coated steel frame and handle
- Curved rod end
- Warranty up to 1 year*
*Effective 1st July 2018
Customer Benefits
- Stops material flow when trigger is released
- Lightweight and highly durable
- For convenient tool support and storage
- Gives you long worry free performance
Applications
![]() |
Bonding |
![]() |
Sealing |
Compatible cartridges

310mL Plastic Cartridge
mm | inch | |
---|---|---|
a |
215.0mm |
8.46inch |
b |
⊘
50mm |
⊘
1.97inch |

400mL Plastic Cartridge
mm | inch | |
---|---|---|
a |
250mm |
9.84inch |
b |
⊘
50mm |
⊘
1.97inch |
