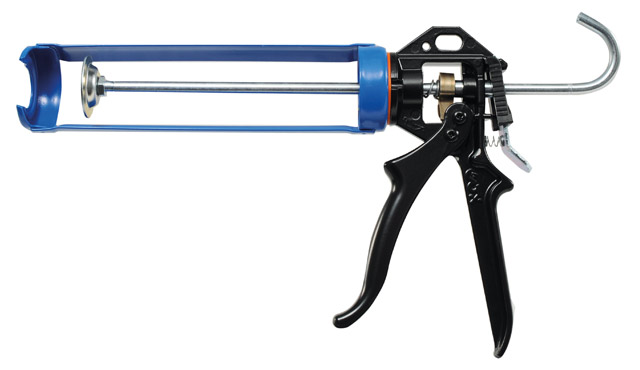

PowerFlow™ Cartridge
A 1-component manual bead dispenser for 310/400mL cartridges.
Specifications:
- Weight: 0.75-0.79kg / 1.65-1.74lbs
- Frame Length: 233mm-274mm / 9.3in-15.0in
- Maximum Thrust: 2.5kN
- Pressure Relief Device (PRD)
- Handle Material: Epoxy Coated Aluminum
- Frame Material: Epoxy Coated Steel
- Tool Component Approvals: REACH
- Cartridge Capacity: 310mL (10.5oz), 400mL (13.5oz)
- Mechanical Advantage Ratio: (12:1)
- Viscosity: Low/Medium
- Standard Color: Blue/Black
- Nozzle Dimension: ø27-31mm / 1.1-1.2in
Customized versions on demand. Make an Enquiry
Features
- High quality epoxy coated cast aluminum handle
- U-opening steel frame
- Curved rod end
- Switchable Pressure Relief Device (PRD)
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Powerful and highly durable
- For ease of cartridge insertion and removal
- Creates convenient tool support and storage
- Prevents material run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm |
8.35inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 150mL
| mm | inch | |
|---|---|---|
| l |
124.5mm |
4.9inch |
| a |
⊘
48.7mm |
⊘
1.9inch |
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
Compatible: 400mL
| mm | inch | |
|---|---|---|
| l |
256mm |
10.1inch |
| a |
⊘
49.0 |
⊘
1.9inch |
