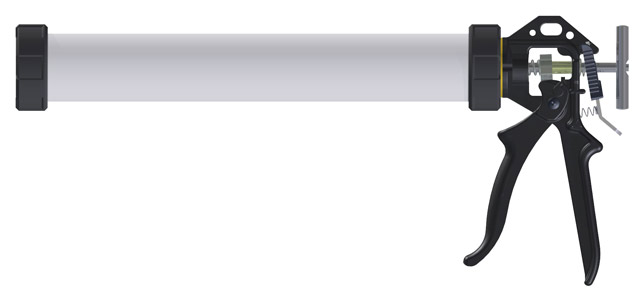

PowerFlow™ HP Combi
A 1-component manual bead dispenser for 310/400mL cartridges and 310/400/600mL sachets.
Specifications:
- Weight: 0.9-1.1kg / 2.0-2.3lbs
- Barrel Length: 274mm-382mm / 10.8in-15.0in
- Maximum Thrust: 3.5kN
- Handle Material: Epoxy Coated Aluminum
- Barrel Material: Anodized Aluminum / Clear Plastic
- Tool Component Approvals: REACH
- Sachet Capacity: 600mL (20.3oz)
- Mechanical Advantage Ratio: (18:1)
- Viscosity: Low/High
- Standard Color: Black/Grey
- Nozzle Dimension: ø38mm / 1.5in
Customized versions on demand. Make an Enquiry
Features
- High quality epoxy coated cast aluminum handle
- Easily converted for cartridges and sachets
- Switchable Pressure Relief Device (PRD)
- Anodized aluminum and clear plastic barrel
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For day long comfortable use
- Gives you complete flexibility
- Prevents material run-on
- Accommodates both cartridges and sachets
- Gives you long worry free performance
Applications
 |
Bonding |
 |
Sealing |
Compatible cartridges Match your Cartridge
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm
|
8.35inch
|
| a |
⊘ 50mm
|
⊘ 1.97inch
|
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
⊘ 50mm
|
⊘ 1.9inch
|
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
⊘ 50mm
|
⊘ 1.9inch
|
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
⊘ 50mm
|
⊘ 1.9inch
|
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 150mL
| mm | inch | |
|---|---|---|
| l |
124.5mm
|
4.9inch
|
| a |
⊘ 50mm
|
⊘ 1.9inch
|
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm
|
13.2inch
|
| a |
⊘ 50mm
|
⊘ 2.0inch
|
