MR 50

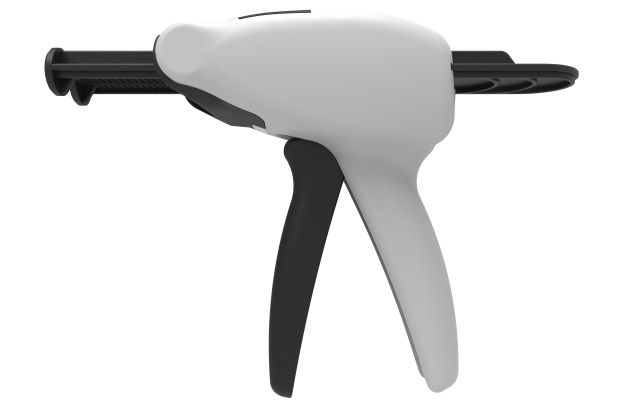

A 2-component manual 50mL dispenser for cartridges.
Specifications:
- Lightweight: 0.24kg/0.5lbs
- Frame Length: 109mm / 4.3in
- Maximum Thrust: 2.5kN
- Handle Material: Glass Fiber Reinforced Nylon
- Frame Material: Glass Fiber Reinforced Nylon
- Tool Component Approvals: REACH
- Cartridge Capacity: 50mL (1.7oz), 75mL (2.6oz) (S-type + Rectangular base)
- Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
- Mechanical Advantage Ratio: 12:1
- Viscosity: Low/Medium
- Standard Color: Grey/Blue
Customized versions on demand. Make an Enquiry
Features
- Cartridge flexibility
- One singular dispenser
- Engineered to provide high thrust
- Simple breech loading mechanism
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Holds s-type, rectangular base & round back
- For 50/75mL cartridges
- Easy comfortable operation
- Ensures cartridges are held securely
- Gives you long worry free performance
Applications
|
Bonding |
Compatible cartridges
MIXPAC A System: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
103mm |
4.06inch |
| a |
⊘
21.7mm |
⊘
0.85inch |
| c |
43.4mm
|
1.71inch
|
MIXPAC A System: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
105mm |
4.13inch |
| a |
⊘
25mm |
⊘
0.98inch |
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
42
|
1.65inch
|
MIXPAC A-System: 50mL 4:1
| mm | inch | |
|---|---|---|
| l |
106mm |
4.17inch |
| a |
⊘
24.8mm |
⊘
0.98inch |
| b |
⊘
13.5mm
|
⊘
0.53inch
|
| c |
38.3mm
|
1.51inch
|
MIXPAC A System: 50mL 10:1
| mm | inch | |
|---|---|---|
| l |
106mm |
4.71inch |
| a |
⊘
25mm |
⊘
0.98inch |
| b |
⊘
9.5
|
⊘
0.37inch
|
| c |
42
|
1.65inch
|
MIXPAC B-System: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
107mm |
4.21inch |
| a |
⊘
21.4mm |
⊘
0.84inch |
| c |
43.4mm
|
1.71inch
|
MIXPAC B-System: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
106mm |
4.17inch |
| a |
⊘
24.9mm |
⊘
0.98inch |
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
42
|
1.65inch
|
MIXPAC B-System: 50mL 4:1
| mm | inch | |
|---|---|---|
| l |
127mm |
5.0inch |
| a |
⊘
24.8mm |
⊘
0.98inch |
| b |
⊘
13.5mm
|
⊘
0.53inch
|
| c |
38.3mm
|
1.51inch
|
MIXPAC B-System: 50mL 10:1
| mm | inch | |
|---|---|---|
| l |
128mm |
5.04inch |
| a |
⊘
25mm |
⊘
0.98inch |
| b |
⊘
9.4mm
|
⊘
0.37inch
|
| c |
42
|
1.65inch
|
MIXPAC BS-System: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
109mm |
4.29inch |
| a |
⊘
22mm |
⊘
0.87inch |
| c |
44.60mm
|
1.76inch
|
MIXPAC BS-System: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
109mm |
4.29inch |
| a |
⊘
25.70mm |
⊘
1.01inch |
| b |
⊘
18.50mm
|
⊘
0.73inch
|
| c |
44.8mm
|
1.76inch
|
MIXPAC BS-System: 50mL 4:1
| mm | inch | |
|---|---|---|
| l |
109mm |
4.29inch |
| a |
⊘
28mm |
⊘
1.10inch |
| b |
⊘
15.40mm
|
⊘
0.61inch
|
| c |
46.90mm
|
1.85inch
|
MIXPAC BS-System: 50mL 10:1
| mm | inch | |
|---|---|---|
| l |
109mm |
4.29inch |
| a |
⊘
29.90mm |
⊘
1.18inch |
| b |
⊘
10.70mm
|
⊘
0.42inch
|
| c |
43.20mm
|
1.70inch
|
Compatible: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
99.7mm |
3.93inch |
| a |
⊘
21mm |
⊘
0.83inch |
| c |
46mm
|
1.81inch
|
Compatible: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
108.5mm |
4.27inch |
| a |
⊘
25mm |
⊘
0.89 inch |
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
46mm
|
1.81inch
|
Compatible: 50mL 4:1
| mm | inch | |
|---|---|---|
| l |
108.5mm |
4.27inch |
| a |
⊘
25mm |
⊘
0.89 inch |
| b |
⊘
13mm
|
⊘
0.51inch
|
| c |
46mm
|
1.81inch
|
Compatible: 50mL 10:1
| mm | inch | |
|---|---|---|
| l |
102mm |
4.02inch |
| a |
⊘
30mm |
⊘
1.18inch |
| b |
⊘
10.8mm
|
⊘
0.43inch
|
| c |
44mm
|
1.73inch
|
