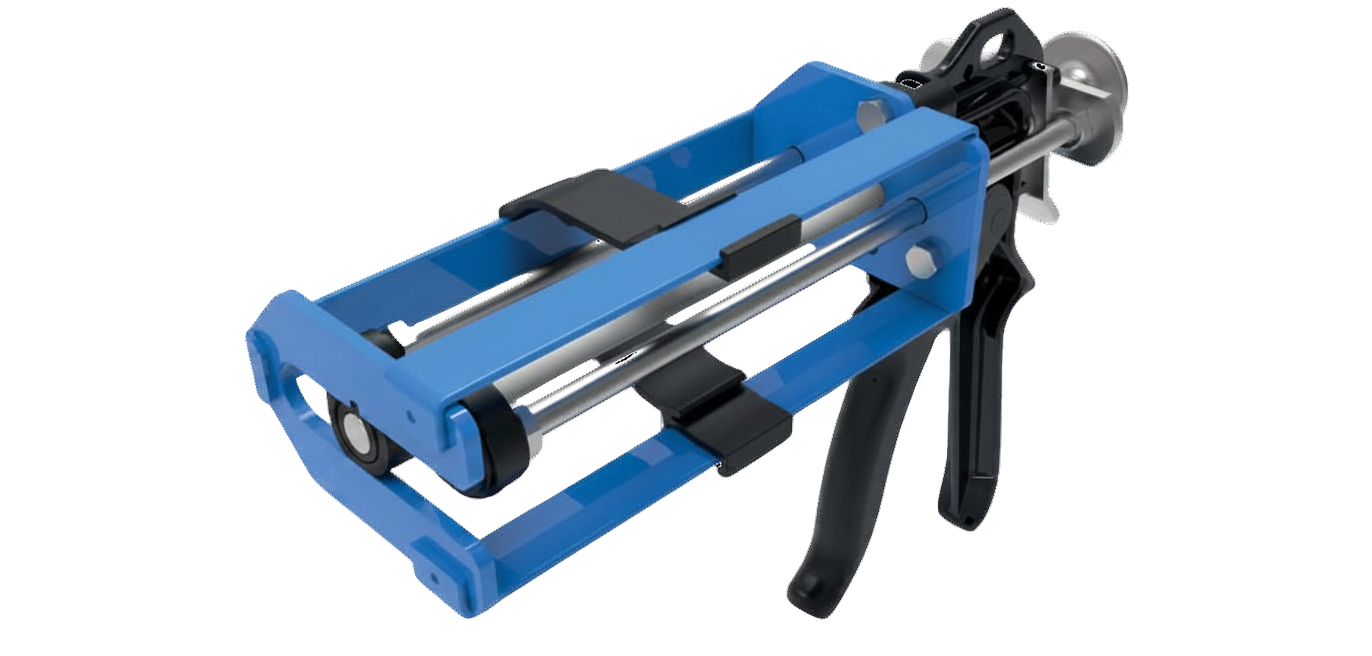

VBM 200X MR
A 2-component manual 200mL dispenser for cartridges. With high-powered 25:1 mechanism and snap fit cartridge straps which gives optimal cartridge support and fit.
Specifications:
- Lightweight: 1.5kg / 3.3lbs
- Frame Length: 163mm/6.4 in
- Cartridge Holder Length: 212mm / 8.3in
- Maximum Thrust: 4.5kN
- Handle Material: Epoxy Coated Aluminum
- Frame Material: Epoxy Coated Steel
- Tool Component Approvals: REACH
- Cartridge Capacity: 200mL (7oz)
- Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
- Mechanical Advantage Ratio: 25:1
- Viscosity: Medium/High
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- High quality cast aluminum handle
- Epoxy coated steel frame support
- Sintered alloy catch plate
- Snap fit cartridge strap
- Customization possible
Benefits
- For day long comfortable use
- For efficient dispensing
- Wear compensation device (WCD)
- Gives you long worry free performance
Applications
 |
Bonding |
 |
Sealing |
 |
Shimming |
Compatible cartridges Match your Cartridge
MIXPAC C-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.46inch
|
| c |
79.0
|
3.11inch
|
MIXPAC C-System: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.97inch
|
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
MIXPAC C-System: 200mL 4:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.93inch
|
| b |
⊘
25mm
|
⊘
0.98inch
|
| c |
77mm
|
3.03inch
|
MIXPAC C-System: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 2.17inch
|
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
MIXPAC F-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.46inch
|
| c |
79mm
|
3.11inch
|
MIXPAC F-System: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.97inch
|
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
MIXPAC F-System: 200mL 4:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.93inch
|
| b |
⊘
25mm
|
⊘
0.98inch
|
| c |
77mm
|
3.03inch
|
MIXPAC F-System: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 2.17inch
|
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
Compatible: 200mL 4:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.93inch
|
| b |
⊘
25mm
|
⊘
0.98inch
|
| c |
77mm
|
3.03inch
|
Compatible: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.46inch
|
| c |
79mm
|
3.11inch
|
Compatible: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.97inch
|
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
Compatible: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
147mm
|
5.79inch
|
| a |
|
⊘ 2.17inch
|
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
