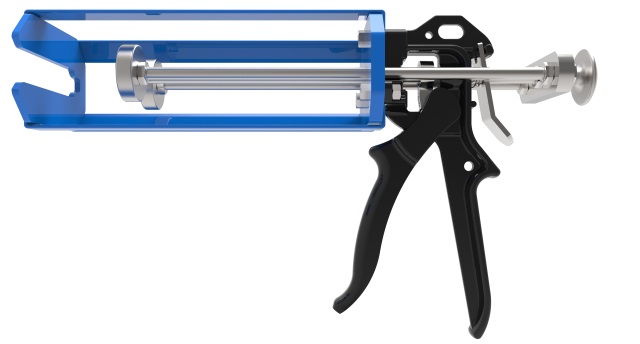

VBM 400X MR
A 2-component manual 400mL dispenser for cartridges.
Specifications:
- Lightweight: 1.8kg / 3.8lbs
- Cartridge Holder Length: 200mm / 7.9in
- Maximum Thrust: 4.5kN (8mm/s)
- Handle Material: Epoxy Coated Aluminum
- Frame Material: Epoxy Coated Steel
- Tool Component Approvals: REACH
- Cartridge Capacity: 400mL (14.0oz)
- Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
- Mechanical Advantage Ratio: 25:1
- Viscosity: High
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- High quality cast aluminum handle
- Epoxy coated steel frame support
- Sintered alloy catch plate
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For day long comfortable use
- For efficient dispensing
- Wear compensation device (WCD)
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
|
Shimming |
Compatible cartridges
MIXPAC C-System: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
MIXPAC C-System: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC C-System: 400mL 4:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
58mm |
⊘
2.28inch |
| b |
⊘
30mm
|
⊘
1.18inch
|
| c |
91mm
|
3.58inch
|
MIXPAC C-System: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
MIXPAC F-System: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
MIXPAC F-System: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC F-System: 400mL 4:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
58mm |
⊘
2.28inch |
| b |
⊘
30mm
|
⊘
1.18inch
|
| c |
91mm
|
3.58inch
|
MIXPAC F-System: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
MIXPAC Blueline: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC Blueline: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
Compatible: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
Compatible: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
47mm |
⊘
1.85inch |
| b |
⊘
33mm
|
⊘
1.3inch
|
| c |
96mm
|
3.78inch
|
Compatible: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
65mm |
⊘
2.56inch |
| b |
⊘
19.5mm
|
⊘
0.77inch
|
| c |
94mm
|
3.7inch
|
