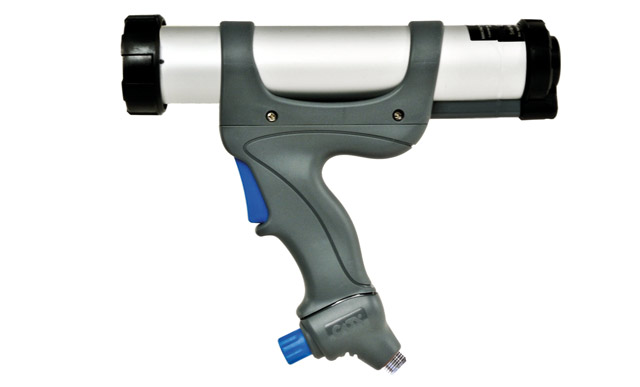

AirFlow™ 3 Sachet
A 1-component pneumatic bead dispenser for 310/400/600mL sachets.
Specifications:
- Weight: 0.78-0.82kg / 1.7-1.8lbs
- Barrel Length: 297-436mm / 11.7-17.2in
- Maximum Thrust: 1.5kN
- Maximum Pneumatic Pressure: 6.8bar (100psi)
- Handle Material: Glass Filled Nylon
- Barrel Material: Anodized Aluminum
- Tool Component Approvals: CE, REACH
- Sachet Capacity: 310mL (10.5oz), 400mL (13.5oz), 600mL (20.3oz)
- Viscosity: Low/Medium
- Standard Colour: Black/Grey
- Nozzle Dimension: ø38mm / 1.5in
Customized versions on demand. Make an Enquiry
Features
- Floating plunger system
- Built-in silencer (less than 70dB)
- Variable speed regulator
- Glass reinforced nylon handle
- 6.8bar (100psi) regulator
- Built-in air hose
- Warranty up to 2 years*
Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Minimizes waste of material
- Lowers the noise level
- For precise control and smooth material flow
- Ergonomically designed for comfort
- Fitted as standard - others are available
- For saftey
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
Compatible Sachet: 310mL
| mm | inch | |
|---|---|---|
| l |
220mm |
8.66inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 400mL
| mm | inch | |
|---|---|---|
| l |
258mm |
10.16inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm |
13.2inch |
| a |
⊘
50mm |
⊘
2.0inch |
