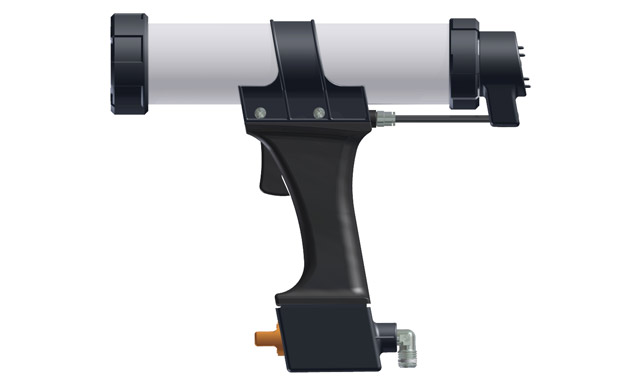

AirFlow™ 2 Cartridge
A 1-component pneumatic bead dispenser for 310/400mL cartridges.
Specifications:
- Weight: 0.73-0.81kg / 1.6-1.7lbs
- Frame Length: 228mm-267mm / 9.0in-10.5in
- Maximum Thrust: 1.2kN
- Maximum Pneumatic Pressure: 6.8bar (100psi)
- Handle Material: Glass Filled Nylon
- Barrel Material: Anodized Aluminum
- Tool Component Approvals: CE, REACH
- Cartridge Capacity:310mL (10.5oz), 400mL (13.5oz)
- Viscosity: Low
- Standard Color: Black/Grey
- Nozzle Dimension: ø38mm / 1.5in
Customized versions on demand. Make an Enquiry
Features
- Glass reinforced nylon handle
- Variable speed regulator
- Anodized aluminum barrel
- 6.8bar (100psi) regulator
- Direct acting mechanism
- Swivel hose
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Ergonomically designed for comfort
- For precise control and smooth material flow
- Lightweight and long life
- Fitted as standard - others are available
- Air pressure applied direct to plunger
- For easy connection
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
Compatible: 400mL
| mm | inch | |
|---|---|---|
| l |
256mm |
10.1inch |
| a |
⊘
49.0 |
⊘
1.9inch |
