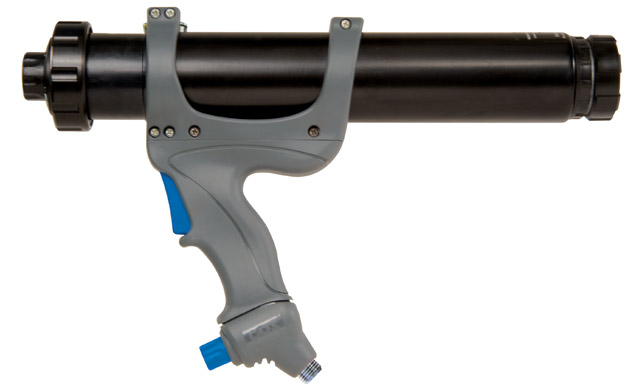

JetFlow™ 3 Sachet
A 1-component pneumatic bead and spray dispenser for 310/400/600mL sachets.
Specifications:
- Weight: 1.24-1.47kg / 2.7-3.2lbs
- Barrel Length: 347-445mm / 13.7-17.5in
- Maximum Thrust: 1.45kN
- Maximum Pneumatic Pressure: 6.8bar (100psi)
- Handle Material: Glass Filled Nylon
- Barrel Material: Aluminum
- Tool Component Approvals: CE, REACH
- Sachet Capacity: 310mL (10.5oz), 400mL (13.5oz) , 600mL (20.3oz)
- Viscosity: Low/Medium
- Standard Color: Black/Grey
Customized versions on demand. Make an Enquiry
Features
- Glass reinforced nylon handle
- Variable speed regulator
- Fitted as standard with a 6.8bar (100psi) regulator
- Built-in silencer (less than 70dB)
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Ergonomically designed for comfort
- For precise control and smooth material flow
- Easy adjustment between bead and spray
- Lowers the noise level
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
Compatible Sachet: 310mL
| mm | inch | |
|---|---|---|
| l |
220mm |
8.66inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 400mL
| mm | inch | |
|---|---|---|
| l |
258mm |
10.16inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm |
13.2inch |
| a |
⊘
50mm |
⊘
2.0inch |
