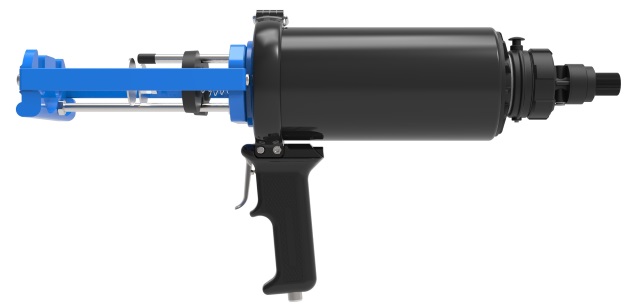

AirFlow™ 1 CBA 200C
A 2-component pneumatic bead 400mL dispenser for cartridges.
Specifications:
- Weight: 2.8kg / 6.2lbs
- Frame Length: 166mm/6.5in
- Maximum Thrust: 5kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 400mL (14.1oz)
- Cartridge Ratio: 1:1
- Viscosity: Medium/High
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Air return as standard
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
Compatible AL: 2x200mL 1:1
| mm | inch | |
|---|---|---|
| l |
145.5mm |
5.7inch |
| a |
⊘
49mm |
⊘
2.0inch |
