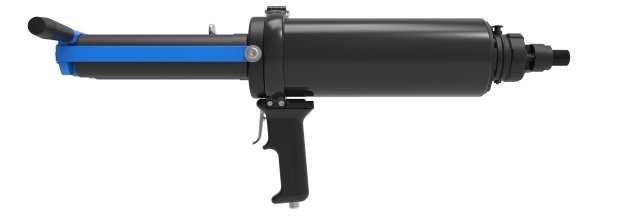

AirFlow™ 1 CBA 310C
A 2-component pneumatic bead 620mL dispenser for cartridges.
Specifications:
- Weight: 3.1kg / 6.8lbs
- Frame Length: 199mm / 7.8in
- Maximum Thrust: 5kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 620mL (21.8oz)
- Cartridge Ratio: 1:1
- Viscosity: Medium/High
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Where to buy
Product Advantages
- Air return as standard
- Minimum trigger pressure
- Quick exhaust valve
- Ergonomic handle design
- Warranty up to 2 years*
*Effective 1st July 2018
Customer Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Prevents run on
- For comfort
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
Compatible AL: 2x310mL 1:1
| mm | inch | |
|---|---|---|
| l |
221mm |
8.7inch |
| a |
⊘
47mm |
⊘
1.9inch |
Compatible AL: 620mL 1:1
| mm | inch | |
|---|---|---|
| l |
217 |
8.54inch |
| a |
⊘
48mm |
⊘
1.89inch |
| c |
95.5mm
|
3.76inch
|
