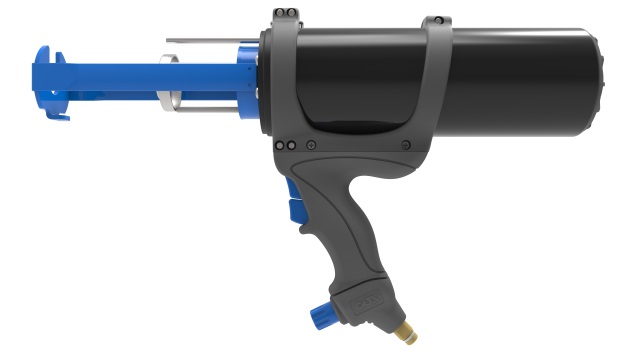

AirFlow™ 3 CCA 380A
A 2-component pneumatic bead dispenser for 380mL cartridges.
Specifications:
- Weight: 2.5kg / 5.5lbs
- Frame Length: 178mm / 7.0in
- Maximum Thrust: 5kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Glass filled nylon
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 380mL (13.4oz)
- Cartridge Ratio: 1:1, 10:1
- Viscosity: Medium/High
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Air return as standard
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
Compatible COAX: 380mL 1:1
| mm | inch | |
|---|---|---|
| l |
183mm |
7.2inch |
| a |
⊘
63mm |
⊘
2.48inch |
| b |
⊘
41mm
|
⊘
1.6inch
|
Compatible COAX: 380mL 10:1
| mm | inch | |
|---|---|---|
| l |
183mm |
7.2inch |
| a |
⊘
63mm |
⊘
2.4inch |
| b |
⊘
18mm
|
⊘
0.7inch
|
