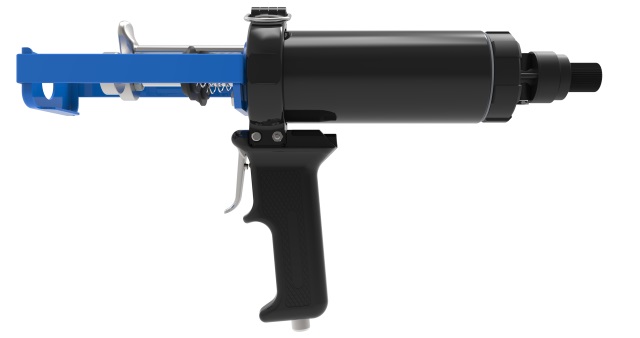

AirFlow™ 1 PPA 75 HP
A 2-component pneumatic 150mL dispenser for cartridges.

Specifications:
- Weight: 1.6kg / 3.4lbs
- Frame Length: 132mm / 5.2in
- Maximum Thrust: 2.2kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 150mL (5.3oz)
- Cartridge Ratio: 1:1
- Viscosity: Low/Medium
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Air return as standard
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
![]() |
Bonding |
![]() |
Chemical Anchoring |
Compatible cartridges

Compatible: 150mL 1:1
mm | inch | |
---|---|---|
l |
115mm |
4.53inch |
a |
⊘
37mm |
⊘
1.46inch |
c |
75
|
2.9 inch
|
