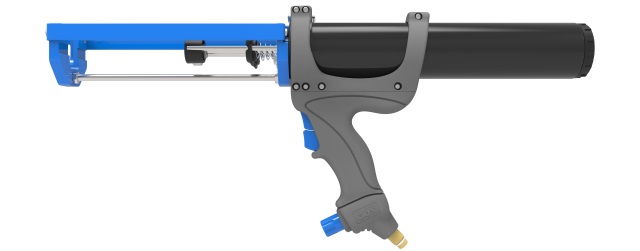

AirFlow™ 3 PPA 150B MR
150/225/300mL Cartridge Dispenser
Specifications:
- Weight: 1.9kg / 4.1lbs
- Frame Length: 235mm / 9.3in
- Maximum Thrust: 2.2kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres / min
- Handle Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 300mL / 10.5oz, 225mL / 7.9oz, 150mL / 5.25oz
- Cartridge Ratio: 1:1, (Coversion kit 225mL 2:1, 150ml 1:1)
- Viscosity: Low / Medium
- Standard Color: Black / Blue
- Customized versions on demand
Features
- Air return as standard
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Quiet operation
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Less than 70dB
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
Compatible: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
115mm |
4.53inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
75
|
2.9 inch
|
Compatible: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.61inch |
| a |
⊘
50mm |
⊘
1.97inch |
| b |
⊘
26.6mm
|
⊘
1.05inch
|
Compatible: 225mL 2:1
| mm | inch | |
|---|---|---|
| l |
217mm |
8.54inch |
| a |
⊘
34mm |
⊘
1.34inch |
| b |
⊘
24.0inch
|
⊘
0.95inch
|
| c |
58.05mm
|
2.29inch
|
Compatible: 300mL 1:1
| mm | inch | |
|---|---|---|
| l |
217mm |
8.54inch |
| a |
⊘
34mm |
⊘
1.34inch |
| c |
78.2mm
|
3.08inch
|
Compatible: 300mL 2:1
| mm | inch | |
|---|---|---|
| l |
217mm |
8.54inch |
| a |
⊘
36mm |
⊘
1.42inch |
| b |
⊘
26.5mm
|
⊘
1.04inch
|
| c |
52.5mm
|
2.07inch
|
