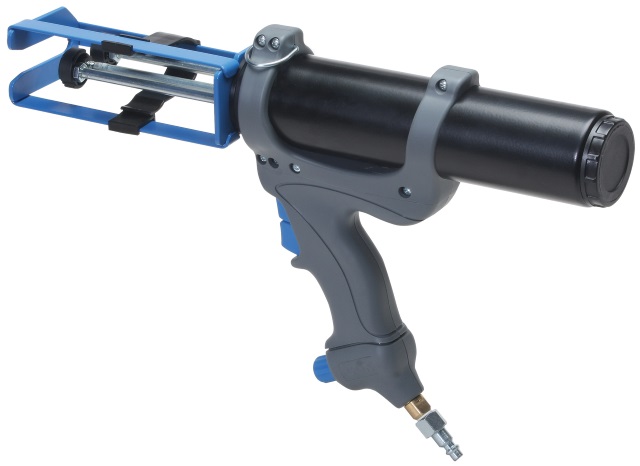

AirFlow™ 1 VBA 200B MR
A 2-component pneumatic dispenser designed for use with low to medium viscosity sealants and adhesives. It offers fast, accurate and effortless application, while the quick exhaust valve prevents run on.
Specifications:
- Weight: 2.2kg / 4.8lbs
- Frame Length: 266mm / 6.5in
- Maximum Thrust: 2.2 kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Epoxy Coated Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 200mL (7oz)
- Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
- Viscosity: Low/Medium
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
Benefits
- Fast accurate, effortless application with minimum fatigue on hands
- Easy cartridge insertion and removal
- Prevents run-on
- Gives professional reliable performance
Applications
 |
Bonding |
 |
Chemical Anchoring |
Compatible cartridges Match your Cartridge
MIXPAC C-System: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 2.17inch
|
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
MIXPAC F-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm
|
5.83inch
|
| a |
|
⊘ 1.46inch
|
| c |
79mm
|
3.11inch
|
