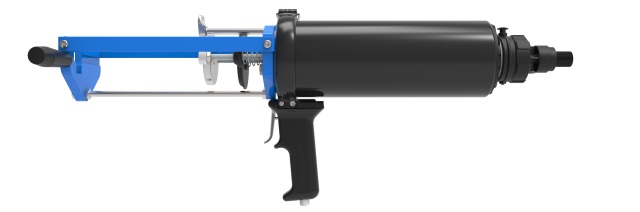

AirFlow™ 1 PPA 750
A 2-component pneumatic bead 825mL dispenser for cartridges.
Specifications:
- Weight: 3.3kg / 7.3lbs
- Frame Length: 236mm / 9.3in
- Maximum Thrust: 5kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 825mL (29oz)
- Cartridge Ratio: 10:1
- Viscosity: Medium/High
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
MIXPAC J-System: 825mL 10:1
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
80.7mm |
⊘
3.18inch |
| b |
⊘
28.6mm
|
⊘
1.13inch
|
| c |
109mm
|
4.29inch
|
Compatible: 825mL 10:1
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
80.7mm |
⊘
3.18inch |
| b |
⊘
28.6mm
|
⊘
1.13inch
|
| c |
109mm
|
4.29inch
|
