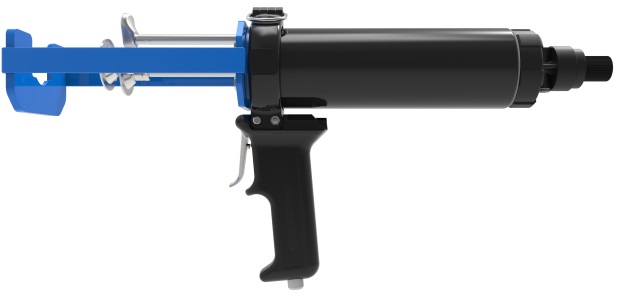

AirFlow™ 1 RBA 200B
A 2-component pneumatic 400mL dispenser for cartridges.
Specifications:
- Weight: 2.0kg / 4.3lbs
- Frame Length: 161mm / 6.3in
- Maximum Thrust: 2.2kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 400mL (14.0oz)
- Cartridge Ratio: 1:1
- Viscosity: Low/Medium
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
 |
Bonding |
 |
Chemical Anchoring |
Compatible cartridges Match your Cartridge
Compatible: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm
|
8.46inch
|
| a |
|
⊘ 1.94inch
|
| c |
98.5 mm
|
3.88inch
|
Compatible: 620mL 1:1
| mm | inch | |
|---|---|---|
| l |
217
|
8.54inch
|
| a |
|
⊘ 1.89inch
|
| c |
95.5mm
|
3.76inch
|
