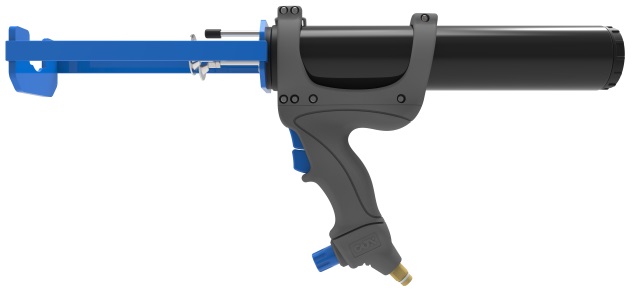

AirFlow™ 3 RBA 300B
A 2-component pneumatic 600/620mL dispenser for cartridges.
Specifications:
- Weight: 2.2kg / 4.9lbs
- Frame Length: 228mm / 9.0in
- Maximum Thrust: 2.2kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Glass filled nylon
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 600mL (21oz), 620mL (21.8oz)
- Cartridge Ratio: 1:1
- Viscosity: Low/Medium
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Air return as standard
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Quiet operation
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Less than 70dB
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
Compatible AL: 2x310mL 1:1
| mm | inch | |
|---|---|---|
| l |
221mm |
8.7inch |
| a |
⊘
47mm |
⊘
1.9inch |
