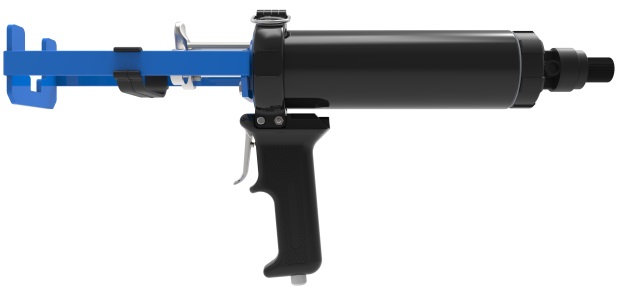

AirFlow™ 1 VBA 100 HP
A 2-component pneumatic 200mL dispenser for cartridges.
Specifications:
- Weight: 1.7kg / 3.7lbs
- Frame Length: 172mm / 6.7in
- Maximum Thrust: 2.2kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 200mL (7oz)
- Cartridge Ratio: 1:1
- Viscosity: Low/Medium
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
MIXPAC C-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79.0
|
3.11inch
|
MIXPAC F-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79mm
|
3.11inch
|
Compatible: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79mm
|
3.11inch
|
