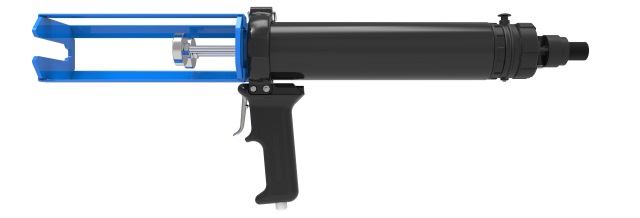

AirFlow™ 1 VBA 400B MR
A 2-component pneumatic 400mL dispenser for cartridges.
Specifications:
- Weight: 2.2kg / 4.8lbs
- Frame Length: 203mm / 8.0in
- Maximum Thrust: 2.2kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Aluminum
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 400mL (14oz)
- Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
- Viscosity: Low/Medium
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Air return as standard
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
MIXPAC C-System: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
MIXPAC C-System: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC C-System: 400mL 4:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
58mm |
⊘
2.28inch |
| b |
⊘
30mm
|
⊘
1.18inch
|
| c |
91mm
|
3.58inch
|
MIXPAC C-System: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
MIXPAC F-System: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
MIXPAC F-System: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC F-System: 400mL 4:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
58mm |
⊘
2.28inch |
| b |
⊘
30mm
|
⊘
1.18inch
|
| c |
91mm
|
3.58inch
|
MIXPAC F-System: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
MIXPAC Blueline: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
52mm |
⊘
2.05inch |
| b |
⊘
37mm
|
⊘
1.46inch
|
| c |
96mm
|
3.78inch
|
MIXPAC Blueline: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
66mm |
⊘
2.6inch |
| b |
⊘
24mm
|
⊘
0.94inch
|
| c |
94mm
|
3.7inch
|
Compatible: 400mL 1:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
45mm |
⊘
1.77inch |
| c |
93mm
|
3.66inch
|
Compatible: 400mL 2:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
47mm |
⊘
1.85inch |
| b |
⊘
33mm
|
⊘
1.3inch
|
| c |
96mm
|
3.78inch
|
Compatible: 400mL 10:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
65mm |
⊘
2.56inch |
| b |
⊘
19.5mm
|
⊘
0.77inch
|
| c |
94mm
|
3.7inch
|
