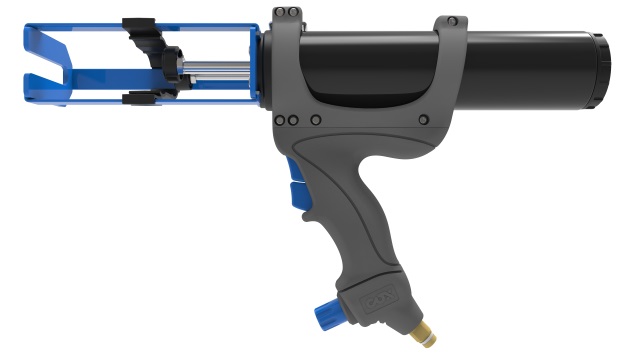

AirFlow™ 3 VBA 200B MR
A 2-component pneumatic 200mL dispenser for cartridges.
Specifications:
- Weight: 2.2kg / 4.8lbs
- Frame Length: 186mm / 7.3in
- Maximum Thrust: 2.2kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres / min
- Handle Material: Glass Filled Nylon
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 200mL (7oz)
- Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
- Viscosity: Low / Medium
- Standard Color: Black / Blue
Customized versions on demand. Make an Enquiry
Features
- Air return as standard
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Quiet operation
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Less than 70dB
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
MIXPAC C-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79.0
|
3.11inch
|
MIXPAC C-System: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
50mm |
⊘
1.97inch |
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
MIXPAC C-System: 200mL 4:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
49mm |
⊘
1.93inch |
| b |
⊘
25mm
|
⊘
0.98inch
|
| c |
77mm
|
3.03inch
|
MIXPAC C-System: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
55mm |
⊘
2.17inch |
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
MIXPAC F-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79mm
|
3.11inch
|
MIXPAC F-System: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
50mm |
⊘
1.97inch |
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
MIXPAC F-System: 200mL 4:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
49mm |
⊘
1.93inch |
| b |
⊘
25mm
|
⊘
0.98inch
|
| c |
77mm
|
3.03inch
|
MIXPAC F-System: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
55mm |
⊘
2.17inch |
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
Compatible: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79mm
|
3.11inch
|
Compatible: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
50mm |
⊘
1.97inch |
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
Compatible: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
147mm |
5.79inch |
| a |
⊘
55mm |
⊘
2.17inch |
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
