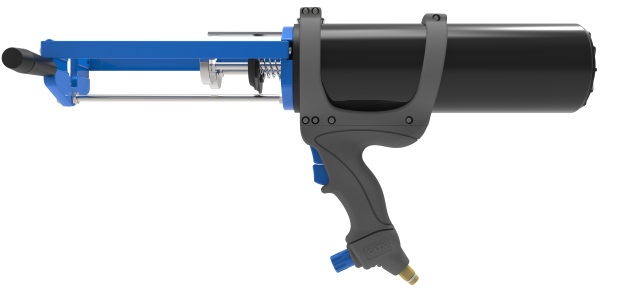

AirFlow™ 3 PPA 300A
A 2-component pneumatic bead 375/450/600mL dispenser for cartridges.
Specifications:
- Weight: 3.3kg / 7.2lbs
- Frame Length: 240mm / 9.4in
- Maximum Thrust: 5kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Glass filled nylon
- Frame Material: Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 375mL (13.2oz), 450mL (15.8oz), 600mL (21.1oz)
- Cartridge Ratio: 1:1, 2:1
- Viscosity: Medium/High
- Standard Color: Black/Blue
Customized versions on demand. Make an Enquiry
Features
- Air return as standard
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Quiet operation
- Warranty up to 2 years*
*Effective July 1st 2018
Benefits
- Fast, accurate and effortless application
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Less than 70dB
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
MIXPAC J-System: 450mL 2:1
| mm | inch | |
|---|---|---|
| l |
217mm |
8.5inch |
| a |
⊘
51.2 |
⊘
2.02inch |
| b |
⊘
37.2mm
|
⊘
1.46inch
|
| c |
90.6mm
|
3.57inch
|
MIXPAC J-System: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm |
8.46inch |
| a |
⊘
49.3mm |
⊘
1.94inch |
| c |
99.1mm
|
3.9inch
|
MIXPAC ecopaCC: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm |
8.46inch |
| a |
⊘
50mm |
⊘
1.97inch |
| c |
100mm
|
3.94inch
|
Compatible: 375mL 4:1
| mm | inch | |
|---|---|---|
| l |
215mm |
8.46inch |
| a |
⊘
49.3mm |
⊘
1.94inch |
| b |
⊘
26.7mm
|
⊘
1.05inch
|
| c |
76mm
|
2.99inch
|
Compatible: 450mL 2:1
| mm | inch | |
|---|---|---|
| l |
215mm |
8.46inch |
| a |
⊘
46.5mm |
⊘
1.83inch |
| b |
⊘
33.2mm
|
⊘
1.31inch
|
| c |
86mm
|
3.39inch
|
Compatible: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm |
8.46inch |
| a |
⊘
49.3mm |
⊘
1.94inch |
| c |
98.5 mm
|
3.88inch
|
