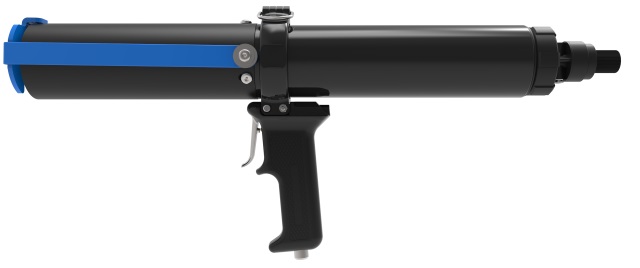

AirFlow™ 1 CCA 380B
A 2-component pneumatic 380mL dispenser for coaxial cartridges.
Specifications:
- Weight: 1.93 kg / 4.25lbs
- Frame Length: 184mm / 7.2in
- Maximum Thrust: 2.2kN
- Maximum Pneumatic Pressure: 6.8bar / 100psi
- Air Consumption: 40 litres/min
- Handle Material: Epoxy Coated Aluminum
- Frame Material: Epoxy Coated Steel
- Tool Component Approvals: CE, REACH
- Cartridge Capacity: 380mL / 13oz
- Cartridge Ratio: 5:1, 10:1
- Viscosity: Medium/High
- Standard Color: Black/Blue
- Customized versions on demand
Features
- Minimum trigger pressure
- U-opening steel frame / plastic support barrel
- Quick exhaust valve
- Warranty up to 2 years*
Benefits
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
MIXPAC Q-System: 380mL 10:1
| mm | inch | |
|---|---|---|
| l |
180mm |
7.09inch |
| a |
⊘
63.1mm |
⊘
2.48inches |
| b |
⊘
18mm
|
⊘
0.71inch
|
Compatible COAX: 380mL 5:1
| mm | inch | |
|---|---|---|
| l |
183mm |
7.2inch |
| a |
⊘
63mm |
⊘
2.4inch |
| b |
⊘
25.2mm
|
⊘
1.1inch
|
Compatible COAX: 380mL 10:1
| mm | inch | |
|---|---|---|
| l |
183mm |
7.2inch |
| a |
⊘
63mm |
⊘
2.4inch |
| b |
⊘
18mm
|
⊘
0.7inch
|
