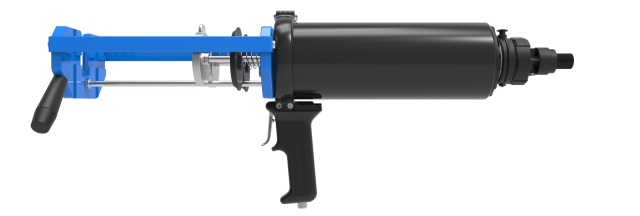

AirFlow™ 1 PPA 1500
825/900/1050/1500mL Cartridge Dispenser
Specifications:
Weight: 3.3kg / 7.3lbs
Frame Length: 236mm / 9.3in
Maximum Thrust: 5kN
Maximum Pneumatic Pressure: 6.8bar / 100psi
Air Consumption: 40 litres / min
Handle Material: Aluminum
Frame Material: Steel
Tool Component Approvals: CE, REACH
Cartridge Capacity: 825mL (29oz), 900mL (30.4oz), 1050mL (35.5oz), 1500mL (52.7oz)
Cartridge Ratio: 1:1, 2.5:1, 5:1, 10:1
Viscosity: Medium / High
Standard Color: Black / Blue
Customized versions on demand
Features
- Minimum trigger pressure
- U-opening steel frame
- Quick exhaust valve
- Warranty up to 2 years*
Benefits
- For effortless use and minimum fatigue
- Ease of cartridge insertion and removal
- Prevents run-on
- Gives you long worry free performance
Applications
|
Bonding |
|
Chemical Anchoring |
Compatible cartridges
MIXPAC J-System: 825mL 10:1
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
80.7mm |
⊘
3.18inch |
| b |
⊘
28.6mm
|
⊘
1.13inch
|
| c |
109mm
|
4.29inch
|
MIXPAC J-System: 1500mL 1:1
| mm | inch | |
|---|---|---|
| l |
217mm |
8.54inch |
| a |
⊘
79.4mm |
⊘
3.13inch |
| c |
159.4mm
|
6.28inch
|
Compatible 1050mL 2.5:1
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
79mm |
⊘
3.11inch |
| b |
⊘
51.0mm
|
⊘
2.01inch
|
| c |
130mm
|
5.12inch
|
Compatible; 900mL 5:1
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
79.0 |
⊘
3.11inch |
| b |
⊘
38mm
|
⊘
1.5inch
|
| c |
118mm
|
4.65inch
|
Compatible: 825mL 10:1
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
80.7mm |
⊘
3.18inch |
| b |
⊘
28.6mm
|
⊘
1.13inch
|
| c |
109mm
|
4.29inch
|
Compatible: 1500mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm |
8.46inch |
| a |
⊘
79mm |
⊘
3.11inch |
| c |
160mm
|
6.3inch
|
