B938 M

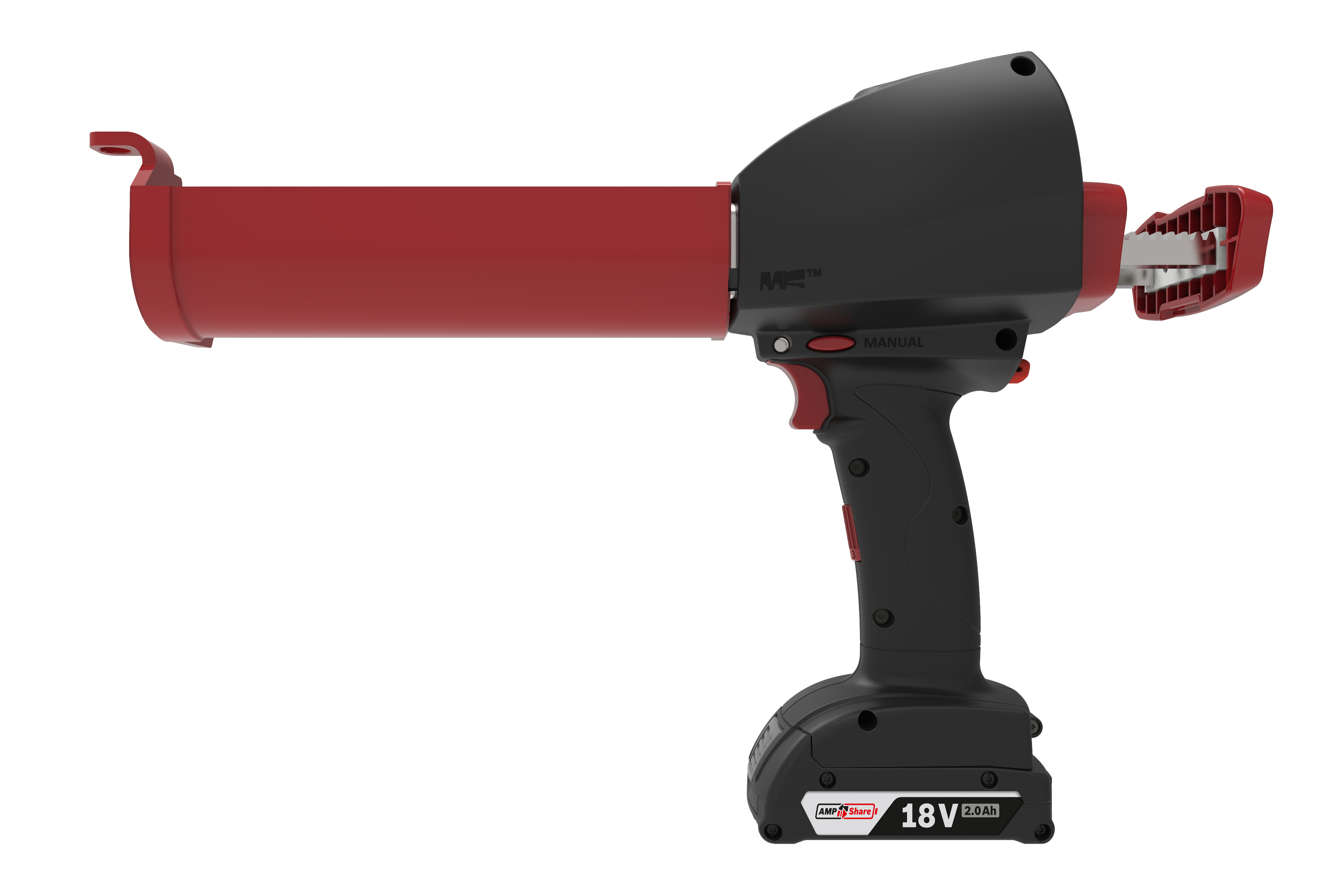

A 2-component 400mL cartridge dispenser powered by Bosch Professional 18V Li-ion batteries.
Specifications:
- Weight: 3.5kg / 7.7lbs
- Cartridge Holder Length: 202mm / 7.95in
- Maximum Thrust: 5kN (5mm/s)
- Voltage: 18V
- Battery Capacity: 2.0Ah
- Battery Charge Time: 35min (2.0Ah)
- Battery Type: Li-ion
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Steel
- Tool Component Approvals: CE
- Cartridge Capacity: 400mL (14oz)
- Cartridge Ratio: 4:1
- Viscosity: Medium/High
- Standard Color: Black/Red
Customized versions on demand. Make an Enquiry
Features
- Rechargeable 18V lithium-ion Bosch battery
- Unique memory function
- Dual drive rack design
- Anti-drip function
- U-opening with cartridge snap fit
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- More capacity, longer usage between charges
- Consistent dosing with every click
- Reproduces quality of each adhesive
- Clean and efficient working
- Robust design
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
|
Shimming |
Compatible cartridges
MIXPAC C-System: 400mL 4:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
58mm |
⊘
2.28inch |
| b |
⊘
30mm
|
⊘
1.18inch
|
| c |
91mm
|
3.58inch
|
MIXPAC F-System: 400mL 4:1
| mm | inch | |
|---|---|---|
| l |
185mm |
7.28inch |
| a |
⊘
58mm |
⊘
2.28inch |
| b |
⊘
30mm
|
⊘
1.18inch
|
| c |
91mm
|
3.58inch
|
