H2 PS

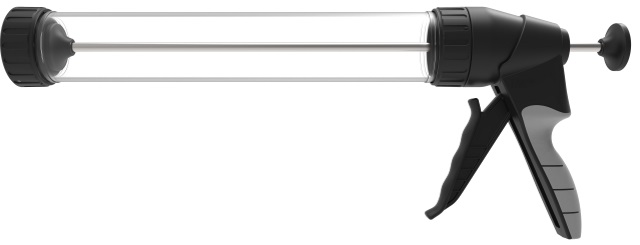

A 1-component manual bead dispenser for 310/400mL cartridges and 400/600mL sachets.
Specifications:
- Lightweight: 0.8kg / 1.7lbs
- Barrel Length: 345mm / 13.6in
- Maximum Thrust: 2.5kN (stroke 6.5mm)
- Handle Material: Reinforced Nylon
- Barrel Material: Transparent Plastic
- Cartridge Capacity: 310mL, 400mL
- Sachet Capacity: 400mL, 600mL
- Mechanical Advantage Ratio: (18:1)
- Viscosity: Medium
- Standard Color: Black/Grey
Customized versions on demand. Make an Enquiry
Features
- Soft grip handle
- Anti-drip and trigger integrated brake release
- Transparent barrel
- Optimal gearing ratio
- Click on/off piston
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For comfortable use
- Fast, reliable and easy handling
- Residual material visible
- For easy conversion from cartridge to sachet
- For easy conversion from cartridge to sachet
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm |
8.35inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
Compatible Sachet: 310mL
| mm | inch | |
|---|---|---|
| l |
220mm |
8.66inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible: 400mL
| mm | inch | |
|---|---|---|
| l |
256mm |
10.1inch |
| a |
⊘
49.0 |
⊘
1.9inch |
Compatible Sachet: 400mL
| mm | inch | |
|---|---|---|
| l |
258mm |
10.16inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm |
13.2inch |
| a |
⊘
50mm |
⊘
2.0inch |
