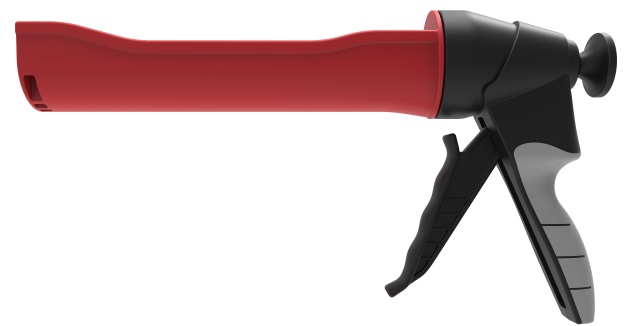

H40 PS
A 1-component manual bead dispenser for 310mL cartridges.
Specifications:
- Lightweight: 0.60kg / 1.3lbs
- Frame Length: 230mm / 9.1in
- Maximum Thrust: 2.5kN (stroke 6.5mm)
- Handle Material: Reinforced Nylon
- Frame Material: Reinforced Nylon
- Cartridge Capacity: 310mL
- Mechanical Advantage Ratio: (18:1)
- Viscosity: Medium
- Standard Color: Black/Grey/Red
- Nozzle Dimension: ø25.5mm / 1.0in
Customized versions on demand. Contact Us
Features
- Soft grip handle
- Anti-drip and trigger integrated brake release
- U-opening with cartridge snap fit
- Reinforced nylon cartridge holder
- 360° rotation
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For comfortable use
- Fast, reliable and easy handling
- Automatic cartridge positioning and fixation
- Long life technology
- For easy access in tight spaces
- Gives you long worry free performance
Applications
 |
Bonding |
 |
Sealing |
Compatible cartridges Match your Cartridge
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm
|
8.35inch
|
| a |
|
⊘ 1.97inch
|
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
|
⊘ 1.9inch
|
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
|
⊘ 1.9inch
|
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm
|
4.6inch
|
| a |
|
⊘ 1.9inch
|
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm
|
8.5inch
|
| a |
|
⊘ 1.8inch
|
