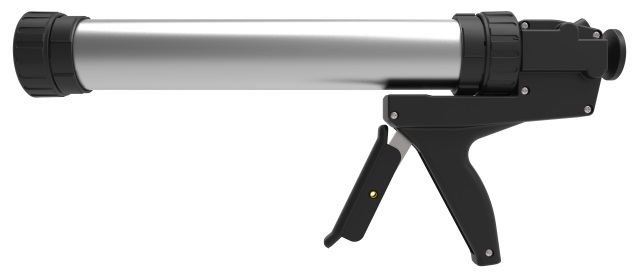

H212 P
A 1-component manual bead dispenser for 310/400mL cartridges and 310/400/600mL sachets.
Specifications:
- Lightweight: 1.29kg / 2.84lbs
- Barrel Length: 373mm / 14.6in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Reinforced Nylon
- Barrel Material: Aluminum
- Cartridge Capacity: 310mL, 400mL
- Sachet Capacity: 310 mL, 400mL, 600mL
- Mechanical Advantage Ratio: (26:1)
- Viscosity: High
- Standard Color: Black/Grey
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Reinforced nylon frame with cartridge
- Life prolonging adjustment screw
- Suitable for both sachet and bulk
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable and easy handling
- Automatic cartridge positioning and fixation
- No loss of performance - anti-wear
- Gives complete flexibility
- Gives you long worry free performance
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm |
8.35inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
Compatible Sachet: 310mL
| mm | inch | |
|---|---|---|
| l |
220mm |
8.66inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible: 400mL
| mm | inch | |
|---|---|---|
| l |
256mm |
10.1inch |
| a |
⊘
49.0 |
⊘
1.9inch |
Compatible Sachet: 400mL
| mm | inch | |
|---|---|---|
| l |
258mm |
10.16inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible Sachet: 600mL
| mm | inch | |
|---|---|---|
| l |
335mm |
13.2inch |
| a |
⊘
50mm |
⊘
2.0inch |
