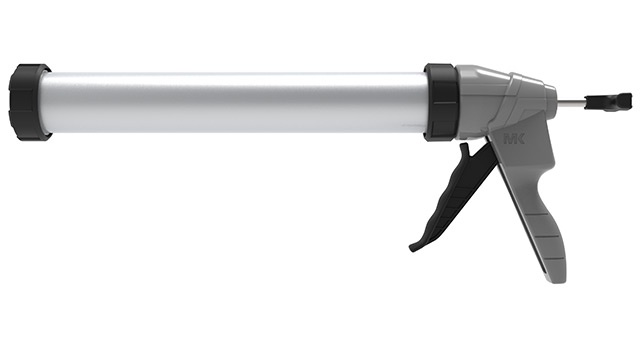

H40+ Combi
NEW and IMPROVED | A 1-component manual bead dispenser for 310mL and coaxial 2-component cartridges as well as foil-packs.
Specifications:
- Weight = 1040g (unboxed)
- Length = 535mm
- Max Thrust = 3.0kN
- Handle Material = Aluminium
- Barrel Material = Aluminium
- Capacity = 600ml
- Colour = Grey/Black
- Mechanical Advantage = 18:1
H40+
Features
- Single handed dispensing operation
- Ergonomic handle
- Trigger-integrated brake release with anti-drip mechanism
- 360° frame rotation
- U-shaped opening cartridge holder
- 2-Year warranty
- Barrel for foil-packs as well as cartridges
Benefits
- Smoother, more precise bead application
- User comfort in all dispensing applications
- One handed control for fast, high precision dispensing
- Uninterrupted handle orientation adjustments to access hard-to-reach areas
- MIXPAC™ New Peeler™ or Mixpeel™ 2-component co-axial and 1-component cartridge
- Reliable performance
- One dispenser for both: cartridges and foil-packs
Applications
|
Bonding |
|
Sealing |
Compatible cartridges
MIXPAC Peeler: 280mL 1:1
| mm | inch | |
|---|---|---|
| l |
212mm |
8.35inch |
| a |
⊘
50mm |
⊘
1.97inch |
Compatible COAX: 150mL 1:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
32mm
|
⊘
1.2inch
|
Compatible COAX: 150mL 2:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
|
⊘
26mm
|
| c |
1.0inch
|
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
14.3mm
|
⊘
0.5inch
|
Compatible: 310mL
| mm | inch | |
|---|---|---|
| l |
216mm |
8.5inch |
| a |
⊘
48.2mm |
⊘
1.8inch |
