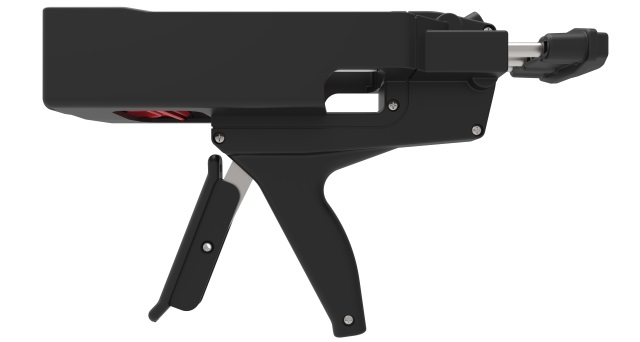

H236 M / H236 M-410
A 2-component manual bead dispenser for 200mL cartridges.
Specifications:
- Lightweight: 1.07kg / 2.3lbs
- Cartridge Holder Length: 157mm / 6.2in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Cartridge Capacity: 200mL (7oz)
- Cartridge Ratios: 1:1 / 2:1 (H236 M), 4:1 / 10:1 (H236 M-410)
- Mechanical Advantage Ratio: (26:1)
- Viscosity: Low/Medium
- Standard Color: Black
Customized versions on demand. Make an Enquiry
Features
- Fast, reliable and easy handling
- Easy cartridge positioning and fixation - snap fit
- Life prolonging adjustment screw
- Lightweight reinforced nylon frame
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- For precise working
- Easy cartridge ratio shift
- No loss of performance - anti-wear
- One hand operation
- Gives you long worry free performance
Applications
|
Bonding |
|
Repair |
|
Sealing |
|
Shimming |
Compatible cartridges
MIXPAC C-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79.0
|
3.11inch
|
MIXPAC C-System: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
50mm |
⊘
1.97inch |
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
MIXPAC C-System: 200mL 4:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
49mm |
⊘
1.93inch |
| b |
⊘
25mm
|
⊘
0.98inch
|
| c |
77mm
|
3.03inch
|
MIXPAC C-System: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
55mm |
⊘
2.17inch |
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
MIXPAC F-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79mm
|
3.11inch
|
MIXPAC F-System: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
50mm |
⊘
1.97inch |
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
MIXPAC F-System: 200mL 4:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
49mm |
⊘
1.93inch |
| b |
⊘
25mm
|
⊘
0.98inch
|
| c |
77mm
|
3.03inch
|
MIXPAC F-System: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
55mm |
⊘
2.17inch |
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
Compatible: 200mL 4:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
49mm |
⊘
1.93inch |
| b |
⊘
25mm
|
⊘
0.98inch
|
| c |
77mm
|
3.03inch
|
Compatible: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79mm
|
3.11inch
|
Compatible: 200mL 2:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
50mm |
⊘
1.97inch |
| b |
⊘
31mm
|
⊘
1.22inch
|
| c |
81mm
|
3.19inch
|
Compatible: 200mL 10:1
| mm | inch | |
|---|---|---|
| l |
147mm |
5.79inch |
| a |
⊘
55mm |
⊘
2.17inch |
| b |
⊘
19mm
|
⊘
0.75inch
|
| c |
78mm
|
3.07inch
|
