H8 XM

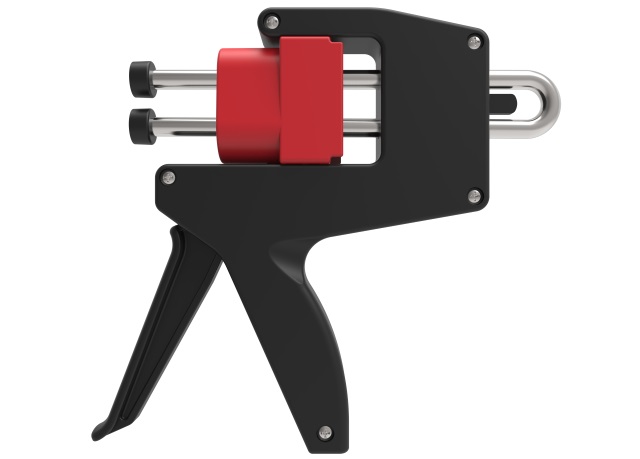

A 2-component manual bead dispenser for 50mL cartridges.
Specifications:
- Lightweight: 0.41kg / 0.9lbs
- Dispenser Length: 181mm / 7.13in
- Maximum Thrust: 1.3kN (stroke 5.4mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Cartridge Capacity: 50mL (1.8oz)
- Cartridge Ratios: 1:1, 2:1
- Mechanical Advantage Ratio: (26:1)
- Viscosity: Low/Medium
- Standard Color: Black/Red
Customized versions on demand. Make an Enquiry
Features
- Anti-drip, trigger integrated brake release
- Reinforced nylon frame and handle
- High gearing ratio
- One hand operation
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable clean application
- Easy handling for precise working
- Long life technology
- Lightweight and compact
- Gives you long worry free performance
Applications
|
Bonding |
Compatible cartridges
MIXPAC A System: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
103mm |
4.06inch |
| a |
⊘
21.7mm |
⊘
0.85inch |
| c |
43.4mm
|
1.71inch
|
MIXPAC A System: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
105mm |
4.13inch |
| a |
⊘
25mm |
⊘
0.98inch |
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
42
|
1.65inch
|
MIXPAC B-System: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
107mm |
4.21inch |
| a |
⊘
21.4mm |
⊘
0.84inch |
| c |
43.4mm
|
1.71inch
|
MIXPAC B-System: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
106mm |
4.17inch |
| a |
⊘
24.9mm |
⊘
0.98inch |
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
42
|
1.65inch
|
Compatible: 50mL 1:1
| mm | inch | |
|---|---|---|
| l |
99.7mm |
3.93inch |
| a |
⊘
21mm |
⊘
0.83inch |
| c |
46mm
|
1.81inch
|
Compatible: 50mL 2:1
| mm | inch | |
|---|---|---|
| l |
108.5mm |
4.27inch |
| a |
⊘
25mm |
⊘
0.89 inch |
| b |
⊘
18mm
|
⊘
0.71inch
|
| c |
46mm
|
1.81inch
|
