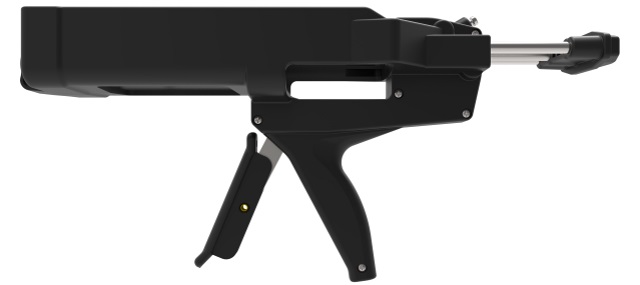

H288 N
A 2-component manual bead dispenser for 600mL cartridges.
Specifications:
- Lightweight: 1.2kg / 2.6lbs
- Cartridge Holder Length: 231mm / 9.1in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Cartridge Capacity: 600mL (21.1oz)
- Cartridge Ratios: 1:1
- Mechanical Advantage Ratio: (26:1)
- Standard Color: Black
- Customized versions on demand
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Life prolonging adjustment screw
- Reinforced nylon barrel housing
- High gearing ratio
- U-opening with cartridge snap fit
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable and clean application
- No loss of performance - anti-wear
- Long life technology
- Easy handling for precise working
- Gives you long worry free performance
Applications
|
Bonding |
|
Crack Repair |
|
Roofing |
|
Chemical Anchoring |
|
Sealing |
|
Solid Surface |
|
Water Proofing |
Compatible cartridges
MIXPAC ecopaCC: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm |
8.46inch |
| a |
⊘
50mm |
⊘
1.97inch |
| c |
100mm
|
3.94inch
|
Compatible: 600mL 1:1
| mm | inch | |
|---|---|---|
| l |
215mm |
8.46inch |
| a |
⊘
49.3mm |
⊘
1.94inch |
| c |
98.5 mm
|
3.88inch
|
