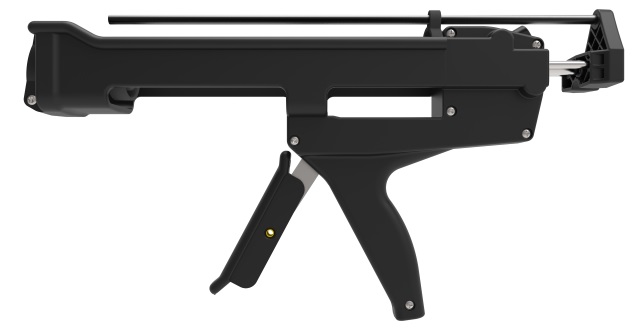

H297 iMN
A 2-component manual bead dispenser for 330mL cartridges.
Specifications:
- Lightweight: 0.8kg / 2.1lbs
- Cartridge Holder Length: 243mm / 9.6in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Cartridge Capacity: 330mL (11.6oz)
- Cartridge Ratios: 10:1
- Mechanical Advantage Ratio: (26:1)
- Viscosity: Medium
- Standard Color: Black
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Life prolonging adjustment screw
- Reinforced nylon barrel housing
- High gearing ratio
- U-opening with cartridge snap fit
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable and clean application
- No loss of performance - anti-wear
- Long life technology
- Easy handling for precise working
- Easy insertion and removal of cartridges
- Gives you long worry free performance
Applications
|
Bonding |
|
Crack Repair |
|
Roofing |
|
Chemical Anchoring |
|
Sealing |
|
Solid Surface |
|
Water Proofing |
Compatible cartridges
MIXPAC Q-System: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
118mm |
4.65inch |
| a |
⊘
50.7mm |
⊘
2.0inch |
| b |
⊘
14mm
|
⊘
0.55inch
|
MIXPAC Q-System: 310mL 10:1
| mm | inch | |
|---|---|---|
| l |
213mm |
8.39inch |
| a |
⊘
51mm |
⊘
2.01inch |
| b |
⊘
14mm
|
⊘
0.55inch
|
Compatible COAX: 310mL 10:1
| mm | inch | |
|---|---|---|
| l |
218mm |
8.58inch |
| a |
⊘
50mm |
⊘
1.97inch |
| b |
⊘
14.2mm
|
⊘
0.5inch
|
Compatible COAX: 150mL 10:1
| mm | inch | |
|---|---|---|
| l |
117mm |
4.6inch |
| a |
⊘
50mm |
⊘
1.9inch |
| b |
⊘
14.3mm
|
⊘
0.5inch
|
