H248

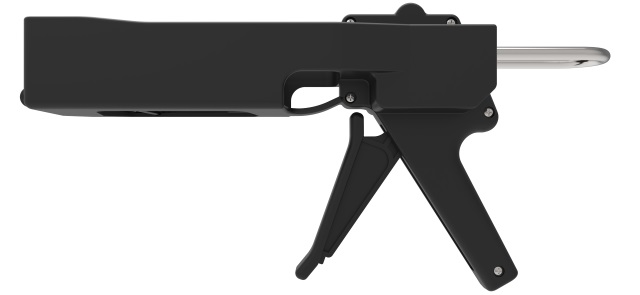

A 2-component manual bead dispenser for 200mL cartridges.
Specifications:
- Lightweight: 0.82kg / 1.8lbs
- Cartridge Holder Length: 194mm / 7.6in
- Maximum Thrust: 3kN (stroke 5mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Cartridge Capacity: 200mL (7oz)
- Cartridge Ratios: 1:1
- Mechanical Advantage Ratio: (18:1)
- Viscosity: Medium
- Standard Color: Black
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Reinforced nylon frame and handle
- High gearing ratio
- One hand operation
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
Fast, reliable clean application
Easy handling for precise working
Long life technology
Lightweight and compact
Customer labelling
Applications
|
Chemical Anchoring |
Compatible cartridges
MIXPAC C-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79.0
|
3.11inch
|
MIXPAC F-System: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79mm
|
3.11inch
|
Compatible: 200mL 1:1
| mm | inch | |
|---|---|---|
| l |
148mm |
5.83inch |
| a |
⊘
37mm |
⊘
1.46inch |
| c |
79mm
|
3.11inch
|
