H244 s

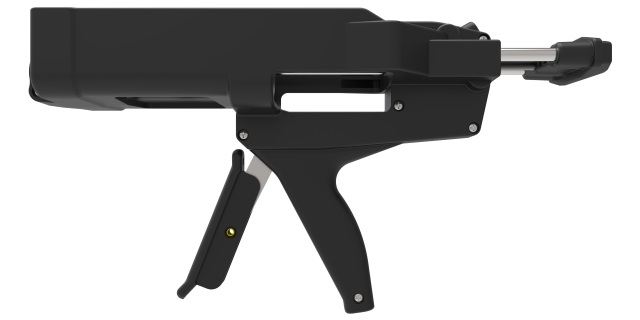

A 2-component manual bead dispenser for 385mL cartridges.
Specifications:
- Lightweight: 1.22kg / 2.6lbs
- Cartridge Holder Length: 187mm / 7.4in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Cartridge Capacity: 385mL (13.6oz)
- Cartridge Ratios: 3:1
- Mechanical Advantage Ratio: (26:1)
- Viscosity: High
- Standard Color: Black
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Life prolonging adjustment screw
- Reinforced nylon barrel housing
- High gearing ratio
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable and clean application
- No loss of performance - anti-wear
- Long life technology
- Easy handling for precise working
- Gives you long worry free performance
Applications
|
Chemical Anchoring |
Compatible cartridges
MIXPAC J-System: 365mL 3:1
| mm | inch | |
|---|---|---|
| l |
171mm |
6.73inch |
| a |
⊘
54.3mm |
⊘
2.14inch |
| b |
⊘
33mm
|
⊘
1.3inch
|
| c |
89.3mm
|
3.52inch
|
Compatible: 385mL 3:1
| mm | inch | |
|---|---|---|
| l |
171mm |
6.73inch |
| a |
⊘
54.4mm |
⊘
2.14inch |
| b |
⊘
32.6mm
|
⊘
1.28inch
|
| c |
90.0mm
|
3.54inch
|
