H239

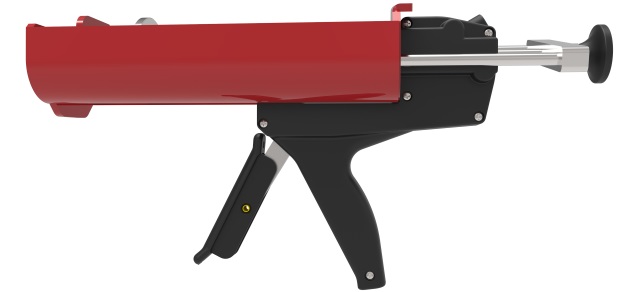

A 2-component manual bead dispenser for 900mL cartridges.
Specifications:
- Lightweight: 2.08kg / 4.5lbs
- Cartridge Holder Length: 235mm / 9.25in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Steel
- Cartridge Capacity: 900mL (31.7oz)
- Cartridge Ratios: 2:1
- Mechanical Advantage Ratio: (26:1)
- Viscosity: High
- Standard Color: Black/Red
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Life prolonging adjustment screw
- Reinforced nylon frame and handle
- U-opening with cartridge snap fit
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable and clean application
- No loss of performance - anti-wear
- Long life technology
- Easy handling for precise working
- Gives you long worry free performance
Applications
|
Chemical Anchoring |
Compatible cartridges
Compatible: 900mL 2:1
| mm | inch | |
|---|---|---|
| l |
225mm |
8.86inch |
| a |
⊘
69mm |
⊘
2.72inch |
| b |
⊘
50mm
|
⊘
1.97inch
|
| c |
119mm
|
4.69inch
|
