H293 PM

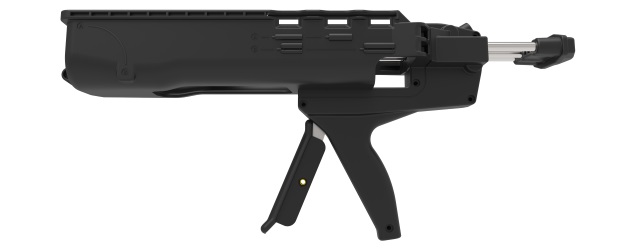

A 2-component manual bead dispenser for 450mL cartridges.
Specifications:
- Lightweight: 1.22kg / 2.6lbs
- Cartridge Holder Length: 228mm / 9.0in
- Maximum Thrust: 5kN (stroke 3.5mm)
- Handle Material: Reinforced Nylon
- Cartridge Holder Material: Reinforced Nylon
- Cartridge Capacity: 450mL (15.8oz)
- Cartridge Ratios: 2:1
- Mechanical Advantage Ratio: (26:1)
- Viscosity: Medium
- Standard Color: Black
Customized versions on demand. Make an Enquiry
Features
- Anti-drip and trigger integrated brake release
- Life prolonging adjustment screw
- Reinforced nylon barrel housing
- High gearing ratio
- Warranty up to 2 years*
*Effective 1st July 2018
Benefits
- Fast, reliable and clean application
- No loss of performance - anti-wear
- Long life technology
- Easy handling for precise working
- Gives you long worry free performance
Applications
|
Chemical Anchoring |
Compatible cartridges
MIXPAC J-System: 450mL 2:1
| mm | inch | |
|---|---|---|
| l |
217mm |
8.5inch |
| a |
⊘
51.2 |
⊘
2.02inch |
| b |
⊘
37.2mm
|
⊘
1.46inch
|
| c |
90.6mm
|
3.57inch
|
